Mainly used for soil drilling, farm irrigation , house yard, gardens,drinking water well,boring drilling etc.
Max Drilling diamter: 400mm.
Max Drilling depth: 100m.
Can use electric motor or diesel engine.
Advantages :
1. One person operation, save labor cost.
2. With universal wheel,convenient to transport.
3. Economical,can be owned by common families.
4. Light weight, simple operation,very easy to install.
Technical Parameters :
|
Model |
E80 |
E100 |
|
Principle |
Positive Cycle |
Positive Cycle |
|
Electricity |
Single Phase |
Three Phases |
|
Drive Motor |
2kw (60V DC) |
3kw |
|
Lift Mtor |
1.5kw (60V DC) |
1.5kw |
|
High Pressure Submerged Pump |
2.2kw |
2.2kw |
|
Max Drilling Depth |
80m |
100m |
|
Max Drilling Diameter |
200mm |
400mm |
|
Drilling Pipe |
42mm diameter, 1.5m/piece |
50mm diameter, 1.5m/piece |
|
Drilling Pipe Equipped |
50m |
50m |
|
Drilling Bit Equipped |
2 pieces |
2 pieces |
|
One small bit (60mm,90mm) + one big bit (160-500mm) |
||
|
Other Parts For One Complete Machine |
High pressure submerged pump-1 unit High pressure water pipe-5m |
|
|
Voltage transformer(change 220V AC to 60V DC) Only used for E80-P1 model |
||
|
Tools,seat,oil seal,english manual,etc |
||

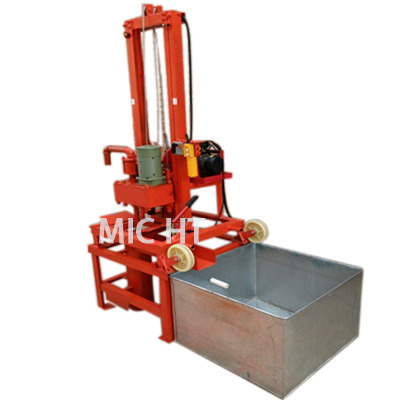

New model with integrated water tank, no need to dig reservoir, can drill wells in room, on concrete floor and floor tiles.
1 What is drilling Bit ?
-----It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
We can customize the drilling bit according to your requirement.
Alloy steel bit for soil:
PDC bit for rocks :
2 What is drilling Pipe(rod)?
-------It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/51/110mm.
Seamless pipes welded by high technology welding machine machine:
3 What is the suction water pump?
------With the high pressure,It is used to draw the sand,soil and other residues out of the well,and can clean the well after the well is finished.
