Features

Specifications

Applicable Industries: Retail, Construction WorksÂ , Energy & Mining

Showroom Location: None

Condition: New

Type: Core Drilling Rig

Power Type: Diesel

Usage: Coring And Water Well

Weight: 510 KG

Warranty: 1 Year

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 6 Months

Core Components: Engine, Gearbox

Key Selling Points: Easy To Operate

Drilling Diameter: 75-220mm

Drilling Depth: Max.130m

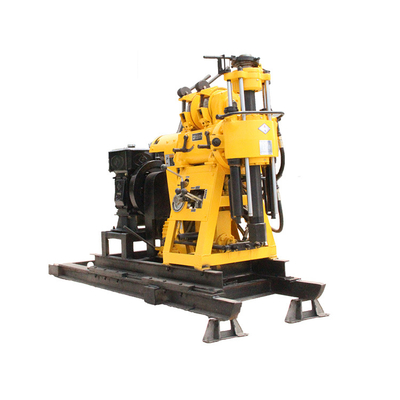

Product Name: Portable Core Drilling Rig

Application: Geological General Investigation And Exploration

Advantage: High Efficiencly Low Enery

Spare Parts Supply: Anytime

Max Open Hole Caliber: 260mm

Drilling Depth: 10-130m

Spindle Stroke: 450mm

Power: Diesel Engine18HP

Price: Negotation

MOQ: 1set

Basic Infomation

Payment & Shipping Terms

Packaging Details: carton packing

Supply Ability: 10 Set/Sets per Month

Product Description

Applications：

XY-130 drilling rig is mainly used for

geological general investigation and exploration, road and tall building foundation
exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner。

Main Features ：

a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

b. The machine is equipped with national

patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance. c. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the
winch.

d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer
and other complex geological conditions. Technical Parameters

Model	XY-130
Drilling depth	10-130m
Max open hole caliber	260mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90°~75°
Drill weight (without power)	510kg
Power	Diesel engine18HP
Dimension	2.40.81.4
spindle speed	142,285,570r/min
Spindle stroke	450mm
Max.lifting capacity	2000kg
Single line lifting speed	0.41,0.82,1.64m/s
Wirerope caliber	13mm
Wirerope length	27m
Type	Horizontal single-urn twin-action
Displacement	95/77L/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Inlet pipe caliber	51mm
Outlet pipe caliber	32mm
Triangle conveyer belt	B1575mm
MOQ	1Set
Price(usd)	6000

Company Profile

Hubei Xingda Imp&Exp Trading Co.,Ltd is a professional manufacturer and trader, specialized in the research and development, sales and service of the industry of engineering drilling,geological exploration,jet grouting drilling, water well drilling field. It has formed three main production system including machine manufacture, drilling construction and management service.

Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.

We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.

Sample Room

Production Process

Exhibition

Certifications

Packing & Delivery

FAQ

1. Are you a manufacturer, trading company or a third party? We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences. 2. What`s your terms of payment? TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance. 3. what`s your terms of delivery? FOB,CIF,CFR 4. What about delivery time ? Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order. 5. What is your minimum order quantity? Our minimum quantity for drillng machine is 1 set. 6. Is your price competitive? A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service. 7.What is the warranty of our machine ? Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need. 8,Could you stick customers brand on the products? We warmly welcome the OEM orders.
