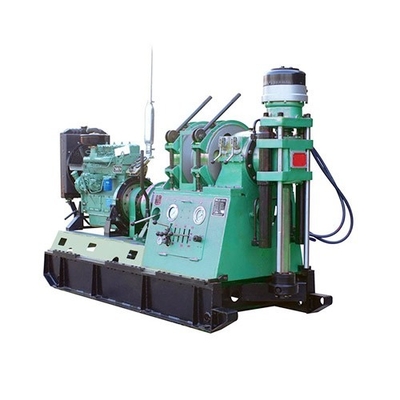

HF-4 Core Drilling Rig / Spindle Core Drill Rig
Drilling Depth: 700-1000m
Engine Power: 30kW/42kW
Rotary Torque: 2740N.m
Main Features
ü The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
ü The drill has 8 rotary speed stage, the max. speed 1588 rpm, the min. speed 101 rpm, so it is suitable for various drilling for solid mineral deposits with diamond or tungsten-carbide tipped bit.
ü The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
ü With compact structure and reasonable layout, and all exposed, non-overlapped components, it is easier for maintenance and repair. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high-speed drilling.
ü The operation levers are concentrated, so the operations are reliable and convenient.
ü Fitted with meters, the circumstances can be controlled easily in hole.
ü The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.
Application
XY-4 core drill is mainly suitable for diamond and cemented carbide exploration and drilling of solid deposits. It can also be used for engineering geology and groundwater exploration, shallow oil and gas exploitation, as well as ventilation and drainage of mine tunnels.
Technical Parameter Core Drilling Rig
|
Drilling depth |
700-1000m |
|
|
Rotation angle of spindle |
0-360° |
|
|
Spindle speed |
Positive |
101,187,267,388,311,574,819, 1191 rpm |
|
Negative |
83,251rpm |
|
|
Max. Rotary torque of spindle |
2740N.m |
|
|
Spindle stroke |
600mm |
|
|
I.D of spindle |
68mm |
|
|
Power |
Y200L-4 motor 30kw/1470rpm Or R4105G53 diesel engine42KW/1500rpm |
|
|
Max. Lifting capacity of spindle |
80KN |
|
|
Max. Pressuring force of spindle |
60KN |
|
|
Max. Hoisting force |
30KN |
|
|
Steel wire diameter |
16mm |
|
|
Content of winding drum |
90m |
|
|
Weight (without power unit) |
1500kg |
|
|
Dimensions (L*W*H) |
2710*1100*1750mm |
|
Detail Pictures Core Drilling Rig
