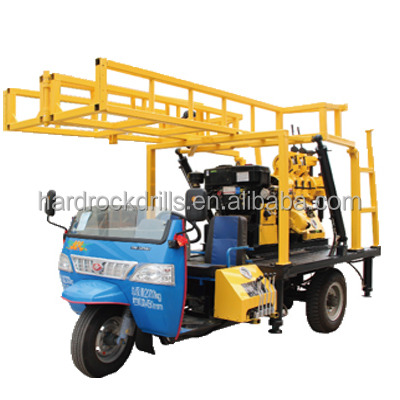

Tricycle Mounted Water Well Drilling Rig Introduction:
Main Features:
1. HM-DX series tricycle mounted automotive drilling rig for multi-function hydraulic car vertical shaft rotary drilling rig.
2.Automobile chassis adopts five sign 7 yp – 1475 d1 three-wheeled vehicles, drilling drive system and winding, mud pump, and other important accessories installed in the chassis, rational layout is compact, easy to operate.
3.Configuration, BW – 160 type of mud pump, high pressure, large flow, ensure the drilling depth and drilling diameter.
4.Drill from mobile devices, can be achieved before and after the host’s own mobile drilling rig, facilitate the wellhead operation
5.Hydraulic drill tower of ups and downs folding rig, safe and convenient to operate.
Applications:
The exploration, geological roads and tall buildings foundation exploration, as well as a variety of concrete structure inspection hole, river levee, roadbed grouting hole drilling and grouting directly, civil water well and geothermal central air conditioning, etc.
Full Data:
| HM-DX 130 | HM-DX180 | HM-DX200 | |
| Machine Specification | |||
| Hole Depth(m) | 130 | 180 | 200 |
| Hole Diameter(mm) | 75 – 220 | 75 – 220 | 75 – 325 |
| Start Hole Diameter(mm) | 220 | 220 | 325 |
| Final Hole Diameter(mm) | 75 | 75 | 75 |
| Drill Pipe Diameter(mm) | 42 – 60 | 42 – 60 | 42 – 60 |
| Borehole Inclination | 90° – 75° | 90° – 75° | 90° – 75° |
| Drive Power | 13.2 | 13.2 | 15 |
| Weight | 600/740 | 620/750 | 880/970 |
| Overall Dimension | 2.4 X 0.8 X 1.4 | 2.4 X 0.8 X 1.3 | 2.4 X 0.8 X 1.5 |
| Vertical Shaft | |||
| Rotating Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045? | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Winch | |||
| Max. Pull Force(KN) | 20 | 21 | 25 |
| Pull Speed(m/s) | 0.41 – 1.64 | 0.35 – 2.23 | 0.12 – 0.95 |
| Rope Dia.(mm) | 9.3 | 9.3 | 12.5 |
| Drum Capcity(m) | 27 | 27 | 35 |
| Drill Mast | |||
| Rated Load(T) | 18 | 18 | 18 |
| Height | 6.5 | 6.5 | 6.5 |
| Mud Pump(optional) | |||
| Type | |||
| Displacement(L/min) | 160 | 160 | 160 |
| Working Pressure(bar) | 13 | 13 | 13 |
| Times/min | 165 | 165 | 165 |
| Inlet Pipe Diameter(mm) | 51 | 51 | 51 |
| Outlet Pipe Diameter(mm) | 32 | 32 | 38 |
| Motor Tricycle | |||
| Model | 350 X 90 | 350 X 90 | 350 X 90 |
| Emission Standard | TierⅡ | Tier Ⅱ | Tier Ⅱ |
| Engine Power(kw) | 16.2 | 16.2 | 16.2 |
| Engine Rotation Speed(rpm) | 2200 | 2200 | 2200 |
