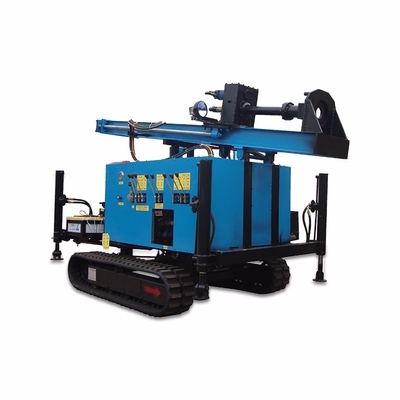

DEFY BRAND/DFQ-100 portable hammer drill rig mounted on Crawler/Skid/Track/Trailer/Truck(Optional)
*100m drill depth,105~150mm diameter
*DTH drill tools,Fastest drilling rig for Rocky areas and Mountain place
*Top drive,Fully Hydraulic drilling
*Can work with both Mud pump and Air compressor,strong adaptability
I. General Description of portable hammer drill rig
DFQ series is much more efficient than the traditional rotary drilling rigs ,can create very considerable economic benefit for users.
DFQ series drilling rig solves the problems to drill very hard rocks, gravel, pebble stratum that the traditional drilling rigs are difficult to drill, DFQ series can work efficiently under all kinds of geological structure.
DFQ series drilling rig is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.
II . Features and Technical Parameters of DFQ-100
1. Fully hydraulic controlling system,highly automated,high working efficiency,saving labor force.
2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.
3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.
4. Four hydraulic support legs,can rise and fall automatically,easy for the rig to be loaded and unloaded.
5. Centralized control of the hydraulic control console, convenient to operate.
6. Chassis can be wheels,crawler or truck,as per your need.
7. Hammer rotary drilling method,making it more easily and efficiently to drill rock ground.
No. |
Item |
Parameter |
1 |
Drilling caliber |
Φ105-150mm |
2 |
Max. drilling depth |
100m |
3 |
Work pressure |
1.05-2.0 MPa |
4 |
Gas consumption |
15~18 m³/min |
5 |
Apply to rock hardness |
f=6-12 |
6 |
Power |
24Kw/2300rpm |
7 |
Gradeability |
25° |
8 |
Lifting force |
8.5 tonf |
9 |
Speed of spindle |
Fast 135 rpm |
Slow 91 rpm |
||
10 |
Rotary torque |
1050N.m |
11 |
Mud pump |
BW-160 |
III. DFQ-100 working on site:
Accessories for your choice:
Remarks:
We provide a Turn-Key solution for drilling equipment, including every small piece you may need. Please send us an inquiry for more details, we will respond and offer you a Complete set of Drilling rigs as per your requirements.
Drilling rig models for your choice:
Model |
Movement |
Borehole Diameter |
Drilling Depth |
DFQ-100 |
Crawler |
105~150mm |
100m |
DFQ-100W |
Wheel trailer |
105~150mm |
100m |
DFQ-150 |
Crawler |
105~203mm |
150m |
DFQ-150W |
Wheel trailer |
105~203mm |
150m |
DFQ-200 |
Crawler |
105~203mm |
200m |
DFQ-200W |
Wheel trailer |
105~203mm |
200m |
DFQ-250 |
Crawler |
105~254mm |
250m |
DFQ-300 |
Crawler |
105~305mm |
300m |
DFQ-400 |
Crawler |
105~400mm |
400m |
