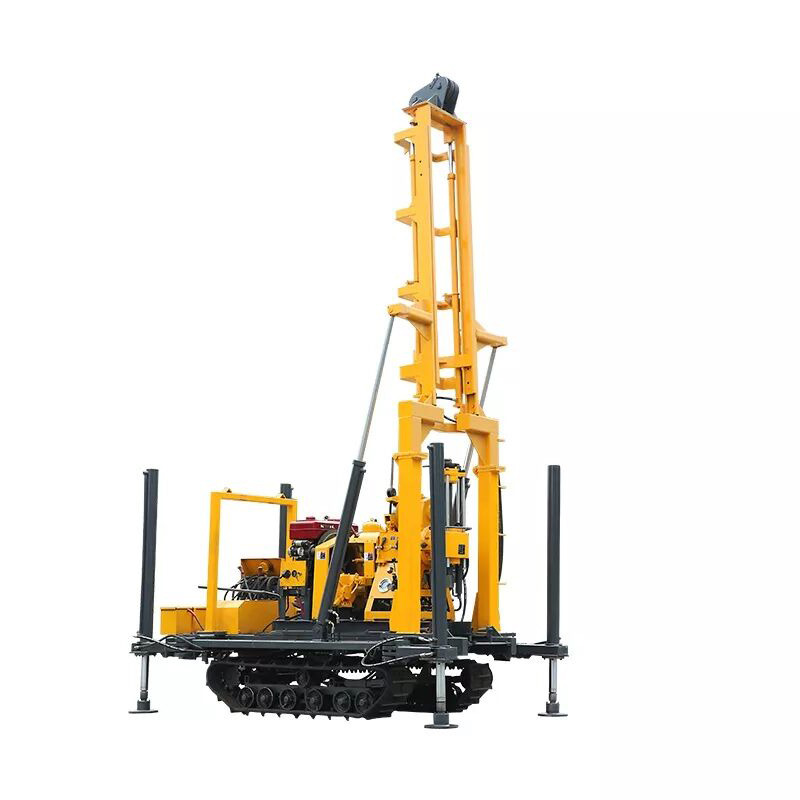

Portable soil machinery water borehole drilling rig

1 Set
MOQ
$11,230.00(1 - 4 Sets) $9,830.00(>=5 Sets)
Price
Portable soil machinery water borehole drilling rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig, Rotary Drilling Rig
Power Type: Diesel, Diesel
Usage: Water Well
Voltage: Drilling Rig
Dimension(L*W*H): 5700*2300*2700mm
Weight: 2880kg
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Engine
Key Selling Points: Energy Saving
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training
Certification: ISO CE, Ce
Drill Rod Caliber: 50mm
Spindle Stroke: 450mm
End Hole Caliber: 75mm
Working Air Pressure: 1.05-4.5MPa
Max. Driling Depth: 200m
Local Service Location: Philippines
Basic Infomation
Certification: ISO CE, ce
Payment & Shipping Terms
Packaging Details: drilling rig Standard wooden case packing
Product Description
Product Description
HW160L Hydraulic Drilling Rig
* 1.This drilling rig use the automatic telescopic drilling tower,supported by two high strength cylinder.and a set of Hydraulic valve control the drilling tower up and down.The operation is saving of time and labor, safety and reliable,to maximize create the benefits for users.
* 2.The Chassis use the Rubber tracks,Lighter weight can reduce the voice from the vehicle moving,and reduce the vehicle body vibration,then can reduce the fuel consumption.it can walk on the city road and dosen’t hurt the road
* 3.The Chassis comes with hydraulic legs,can use for rig leveling,loading and unloading,it can also can be used as ancillary support when machine working4、24Ve1ectric-start diesel engine reduces the operator's labor intensity.
* 4.It use the 24v electric start diesel engine, reducing the operator's labor intensity, especially in the cold season, when diesel engine difficult to start, it showed a great advantage.
* 5.The machine supporting Bw-160 mud pump,the flow and lift of pump is big,and easy maintenance,the spare parts can easy purchase in all over the country
* 6.Customer can choose to add the screw pipe machine(75-168mm),Improve work efficiency and reduce labor costs
* 7.We have model HW-160L/HW-190L/HW-230L can choose
Hydraulic crawler-mounted drilling rig parameter





(Machine parameter)
Model
HW-160L
Drilling depth(m)
160M
Open hole dia. (mm)
500, 220
End hole dia. (mm)
75
Drill rod dia. (mm)
42、50
drill angle (° )
90-75
Matching engine power (kW)
13.2
Dimension L*W*H(m)
3.8*1.95*2. 7
Spindle
Speed (r/min)
142/285/570
Stroke (mm)
450
(Crawler chassis)
Crawler size (mm)
350*90*48
Climbing angle (° )
20°
Moving speed (km/h)
10
(mm)
Hydraulic leg valid height
1300
(Drill tower)
Rated load (ton)
18
Height (m)
6.5
Features:
a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
Products Details
Working
Our crawler type water well drilling rig hot sales and have a nice feedback from customers
Certifications
Our drilling rig have CE,ISO ,BV certificate
Our Company
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 3 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
