Home /Products/Soil Drilling Rig/HuaxiaMaster High Efficiency Sale QTZ-1S Portable Soil Drilling Rig Mud Sampling Rig Soil Sampling Tool with Fast Speed

HuaxiaMaster High Efficiency Sale QTZ-1S Portable Soil Drilling Rig Mud Sampling Rig Soil Sampling Tool with Fast Speed

1 Set
MOQ
$2,000.00(1 - 4 Sets) $1,800.00(>=5 Sets)
Price
HuaxiaMaster High Efficiency Sale QTZ-1S Portable Soil Drilling Rig Mud Sampling Rig Soil Sampling Tool with Fast Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Chile
Condition: New
Type: Core Drilling Rig
Power Type: Gasoline
Usage: Geological Exploration
Dimension(L*W*H): 1200*600*600mm
Weight: 23 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine
Key Selling Points: Easy To Operate
Drilling Diameter: 50mm, 75mm
Drilling Depth: Max.10m
Product Name: QTZ-1S Portable Dual-tube Soil Drilling Rig
Application: Geological Exploration
Feature: High Drilling Efficiency
Drilling Method: Percussive
Engine: Gasoline Power
Drilling Depth: 10m
Drilling Diameter: 50/70mm
Drill Rod Diameter: 25mm
Key Word: Core Drilling Rig
Advantage: High Performance
Basic Infomation
Payment & Shipping Terms
Packaging Details: Export Wooden BOX
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

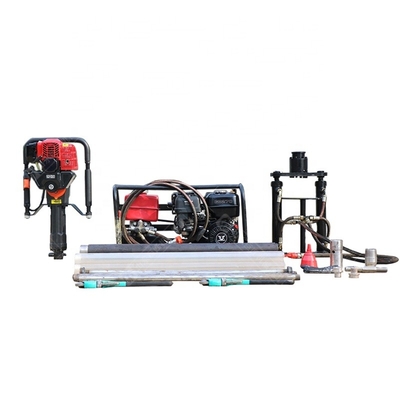

1. Brief introduction of QTZ-1S portable dual-tube soil drilling rig


QTZ-1S portable dual-tube soil sampling drilling rig is a portable soil sampling drilling
rig that is held by a single person. The drilling rig adopts gasoline engine power, simple operation, high safety, stable
performance, and can conduct doub le-pipe sampling. In the double-tube sampling process, it can effectively avoid secondary
pollution, and has no pollution and less disturbance to the sampled soil. It is a high-efficiency and high-quality soil sampling
device.


2. QTZ-1S portable dual-tube soil drilling rig application field


* Double-pipe sampling is possible, which can effectively avoid secondary pollution.
* Equipped with hydraulic lifting device, no need for manpower to lift the drillpipe, saving time and effort.
* The sampling depth can reach 5 to 10 meters, which can meet the requirements of actual sampling depth.
* The undisturbed soil sample taken out can maintain its integrity.
* The drilling rig is simple in structure, small in size, light in weight, and easy to assemble, transport and disassemble.
Specification
QTZ-1S portable dual-tube soil drilling rig
Power
Power
2.8HP gasoline engine
Fire method
Recoil drawstring
Fuel consumption
0.5L/H
Impact times
1500r /min
Impact energy
20J~55J
Core depth
5M~10M
Host weight
23KG
Hydraulic pump station power
6HP gasoline engine
Pulling force of hydraulic puller
60KN
Product display
Packing & Delivery
Packing Details : Full Container Load or Export Wooden Box Packing
Delivery Details : 3-15 days after order
