Home /Products/Crawler Drilling Rig/Construction works   Crawler Mounted GM-5 Borehole Rotary Hydraulic Engineering Drilling Rig Price

Construction works   Crawler Mounted GM-5 Borehole Rotary Hydraulic Engineering Drilling Rig Price

1 Set
MOQ
$36,600.00(>=1 Sets)
Price
Construction works   Crawler Mounted GM-5 Borehole Rotary Hydraulic Engineering Drilling Rig Price
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Anchor Drilling Rig
Power Type: Electric
Usage: Anchorage Works
Dimension(L*W*H): 5450*2300*2250mm
Weight: 6500 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 6 Months
Core Components: Motor, Pump, Gearbox
Key Selling Points: Energy Saving
Drilling Diameter: 200mm
Drilling Depth: Max.150m
Product Name: Multifunctional Drilling Rig
Maximum Torque: 6500 N.m
Rotate Speed: 0-150 R/min
Climbing Ability: 20°
Traveling Speed: 0.8km/h
MOQ: 1set
Basic Infomation
Payment & Shipping Terms
Packaging Details: carton packing
Supply Ability: 10 Set/Sets per Month
Product Description
Product Description

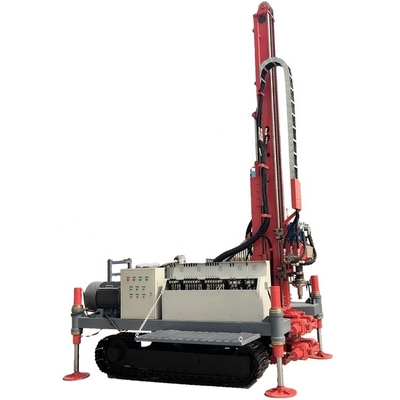

GM-5 Crawler Mounted Rotary Hydraulic Borehole Engineering Drilling Rig Price
One . application 1. Urban deep foundation pit support, soil nail wall support, railway and road slope support. 2. Anti-floating anchor rod, thin underground continuous wall and anti-seepage wall in foundation treatment. 3. Pipe shed grouting and water stop grouting in tunnel engineering. 4. Construction of rock blasting holes for roads, mines, hydropower dams, etc. 5. Foundation reinforcement of various industrial and civil buildings such as railways, highways, bridges, roadbeds and dam foundations, water-blocking and sealing works, soft foundation treatment and geological disaster management. 6. Engineering application of bolt drilling, down-the-hole drilling, casing drilling and drill pipe casing composite drilling. 7. Single-tube and double-tube construction for general rotary jet engineering
Two. Main feature 1. Adopt full hydraulic power head transmission, infinitely variable speed, high drilling efficiency, low labor intensity. 2. The hydraulic system of drilling rig is stable and reliable with long service life. 3. The power head adopts hydraulic variable-speed mode with high and low grades, which can meet the requirements of various formations and different drilling techniques. 4. The drill has the function of crawler walking by itself, and the equipment can be moved easily and quickly. 5. Equipped with a slewing mechanism, the hole can be manually transferred to the side of the track when needed. 6. Compact structure, centralized operation, convenient and safe. 7. The column can be stretched back and forth to meet the bolt construction requirements. 8. Optional clamping device reduces labor intensity and operation time of loading and unloading drill pipe.
Three . Drilling range 1. Suitable for high-speed drilling in soil, sand and other strata, discharge mud and slag ;Three - wing bit and one - bit drilling,. 2. It is suitable for drilling with air DTH hammer in rock stratum and broken stratum and discharging slag with air. 3. It is suitable for drilling with hydraulic hammer at the bottom of holes in water-bearing strata such as broken layer and sand egg layer to discharge mud and slag. 4. Drill pipe drilling and casing drilling. 5. It can realize single pipe, double pipe, triple pipe rotary jet, swing jet, fixed jet and other rotary jet technology (customer optional). 7. It can be used as a complete set of equipment with the high-pressure grouting pump, mud mixer, rotary jet, rotary jet drill, flow deflector, nozzle, three-wing bit, one type bit and compound slice bit of our company. 8. It can be seamlessly connected with domestic and foreign drilling tools through reducer joint.
Maximum torque
6500 N.m
Rotate speed
0-150 r/min
Power head maximum stroke
3400 mm
Power head rated lifting force
60 kN
Power head plus pressure
30 kN
Drill rod diameter
Ф50 mm、Ф7 3mm、Ф89 mm
Drilling angle
0°～ 90°
Lifting /plus pressure speed
Speed adjustment of rotary jet 0～0.75/1.5m/min
Power head rapid lifting
0～13.3 /0～26.2 m/min
Engine power
55+18.5+2.2 kW
Column stretch
900 mm
Climbing ability
20°
Travel speed
0.8km/h

Dimension
（working mm）3750×2450×5450
（transporting mm）5450×2300×2250
Weight
6500 kg
MOQ
1Set
Price(usd)
36600
Company Profile
Hubei Xingda Imp&Exp Trading Co.,Ltd is a professional manufacturer and trader, specialized in the research and development, sales and service of the industry of engineering drilling,geological exploration,jet grouting drilling, water well drilling field. It has formed three main production system including machine manufacture, drilling construction and management service.
Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.
We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.
Sample Room
Production Process
Exhibition
Certifications
Packing & Delivery
FAQ
1. Are you a manufacturer, trading company or a third party? We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences. 2. What`s your terms of payment? TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance. 3. what`s your terms of delivery? FOB,CIF,CFR 4. What about delivery time ? Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order. 5. What is your minimum order quantity? Our minimum quantity for drillng machine is 1 set. 6. Is your price competitive? A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service. 7.What is the warranty of our machine ? Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need. 8,Could you stick customers brand on the products? We warmly welcome the OEM orders.
