Brief Details of Water Well Drilling Rig:
1. Model No.: XY-200C
2. Max. Drilling Depth:200m
3. Drilling Rod Diameter: 42,50,60mm
4. Borehole Diameter: 75~~400mm
5. Warranty: One year guarantee excluding wearing parts
6. Certifications: BV, SGS Certificate
7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.
Product Specifications:

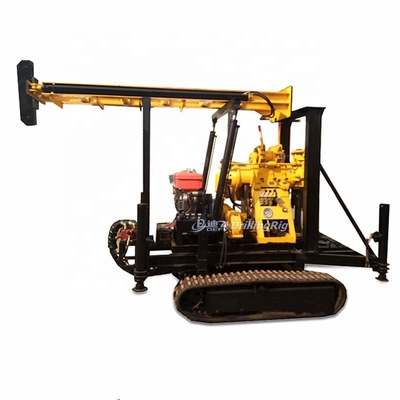

XY-200C geological drilling rigs can drill up to 200m with caliber 75mm to 400mm in soil, sand, gravel, hard rocks, etc. It is equipped with a diesel engine, BW-160 mud pump, integrative drill tower, hydraulic control system, diamond bit, etc. It is widely applied for water well, geological exploration, mining blast holes, construction foundation holes, etc.
Parameters of Water well Drilling Rig XY-200C
|
1.Overall parameters |
|
|
Drilling depth |
200m |
|
Maximum open hole caliber |
400mm |
|
End hole caliber |
75mm |
|
Diameter of drill rod |
42,50,60mm |
|
Drilling angle |
90~75 degree |
|
Weight(not include power) |
810kg |
|
Dimension |
2750*950*1600mm |
|
2.Hoist |
|
|
Max. single line hoisting capacity |
1600Kg |
|
Reel Lifting Speed |
17, 35, 75, 151m/s |
|
3.Mud pump |
|
|
Type |
Horizontal single urn twin-action |
|
Rate of flow |
95/77L/min |
|
Diameter of water inlet tube |
42mm |
|
Diameter of water outlet tube |
32mm |
|
4.Power |
|
|
Diesel engine |
22HP, 2200r/min |
|
Electrical motor |
15KW, 1460r/min |
Packing and delivery
How do choose a suitable machine?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend a suitable machine. If you have special demands, please tell us in advance.
DERY Service
1.Professional technical support pre-sale, sale and after-sale.
2. Your problems can get feedback in 8 hours and solved in 24 hours.
3. Machine can be customized as per your requirement.
4. One-year quality warranty.
5. Training: operation manual and DVD operation video, overseas installation is also available.
6. Spare parts are available in our factory at a cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner, and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need it.
