Features

Specifications

Applicable Industries: Construction WorksÂ , Energy & Mining

Showroom Location: None

Condition: New

Type: Core Drilling Rig

Power Type: Diesel

Usage: Ore

Voltage: 220v

Dimension(L*W*H): 15 X 3.15 X 3.4m

Weight: 52000 KG

Warranty: 1 Year

Marketing Type: Hot Product 2021

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 2 Years

Core Components: Motor, Pressure Vessel, Pump, PLC, Other, Gear, Bearing, Engine, Gearbox

Key Selling Points: High Safety Level

Drilling Diameter: 300mm, 50mm, 75mm, 60mm, 100mm, 200mm, 600mm

Drilling Depth: Max.100m

Mobility: Mobile

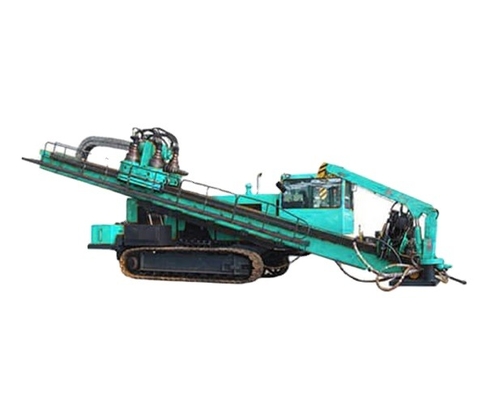

Product Name: HFDD-400 Crawler Type Full Hydraulic Drilling Rig

Power Of Engine: 243kw(Weichai Powe)/239kw

Pull Capacity: 4000KN

Feed Stroke: 6000mm

Guide Hole Diameter: 240mm

Penetration Angle: 8Â° -16Â°

Walking Speed: 2-4km/h

Dimension: 15 *3.15 * 3.4m

Local ServiceÂ Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile

After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service

Certification: ISO CE

Basic Infomation

Certification: ISO CE

Payment & Shipping Terms

Packaging Details: Standard Exported Package.

Supply Ability: 20 Set/Sets per Month

Product Description

► Product Description
1. Adopting first-class hydraulic products in the world and the hydraulic circuit in closed for push-pull and rotation, and open for auxiliary circuit loading sensing system working together, and with electric-hydraulic praportional control in high
efficiency.
2. Adopting double power system to meet different working condition, the power unit can work with two engines or one flexibly to save the energy and to reduce the consumption; if one hydraulic system or engine goes to disorder, the other one can work normally(working capacity keeping without change, but operation speed reduced).
3. Adopting electrical and manual control of operation valve group, imported from USA, the main Sauer control valve is very reliable,
4. Pointers and electronic devices are adopted together for data showing of the rig, rig pressure, torque, rotation speed and push-pull capacities are clear at a glance.
5. Adopting two-low- speed and large torque motor made by Poclain Hydraulics Industrie SAS, France for the rotation of drill head; set with 2 gear stepless speed adjustment function, floating of spindle is helpful for protection of rod thread.
6. Adopting six motors with reducer driving for drill head feeding/pull and adopting rack and pinion transmission structure, the rig is in high stability and efficiency.
7. Installed with operation cabin equipped with air conditioner, the rig is easy to operate in a comfortable working environment.
8. Shackles can be adjusted for the space of making jaws and breaking jaws; breaker can be centered automatically, breaking accurately, stably and reliably and gripper can move on the mast full stroke.

Technical Data

Engine Power	Weichai Power 2x275KW(1900r/min)	Crane on Rig	3.2t
Max. Push/Pull Capacity	4000KN	Traveing Speed	2-4Km/h
Max. Feeding/Pull Speed	I Gear: 7.5m/min II Gear: 32m/min	Max. Perissible Gradient	20°
Max. Rotation Torque	98000N·m (I Gear) 49000N·m (II Gear)	Max. Pump Max. Flow Rate	2200L/min(Optional)
Spindle turning speed	0-42r/min 0-84r/min	Maximum mud pump pressure	10MPa
Mast Pentration Angle	8°-16°	Rod Size	5'' 5-1/2''
Maximum top torque	110000N·m	External dimensions ( l * w * h)	153.153.4m
Maximum shackle torque	220000N·m	Weight	52t

Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,

horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

1. More than 20 years of experience

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.

Pre-sale services:

1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

Services provided during the sale

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.

After-sale services

Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.

FAQ

1, Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
