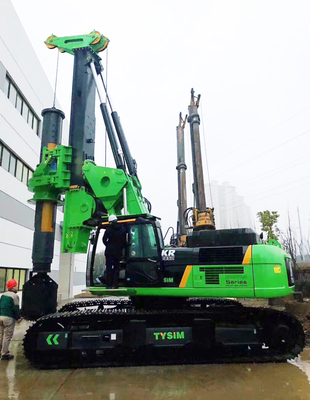

Home /Products/Hydraulic Rotary Drilling Rig/Construction works   Tysim KR300DS Hydraulic Rotary Drilling Rig With Max Depth 26m And Diameter 2000mm

Construction works   Tysim KR300DS Hydraulic Rotary Drilling Rig With Max Depth 26m And Diameter 2000mm

1 Set
MOQ
$480,000.00(>=1 Sets)
Price
Construction works   Tysim KR300DS Hydraulic Rotary Drilling Rig With Max Depth 26m And Diameter 2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works
Showroom Location: Philippines, Saudi Arabia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine
Condition: New
Efficiency: High Efficiency
Piling Speed(m/min): According To The Geological Condition
Weight: 76t
Dimension(L*W*H): 16525*3000*3660
Warranty: 1 Year
UNIQUE SELLING POINT: Imported Engine
Product Name: Rotary Drilling Rig
After-sales Service Provided: Overseas Third-party Support Available, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Soil Boring Machine: Super Soil Boring Machine Hydraulic Rotary Drilling Rig KR300C
Max. Torque: 320 KN.m
Max. Drilling Diameter: 2000mm
Max. Drilling Depth: 26m
Working Speed: 6~26rpm
Max. Cylinder Thrust: 220kN
Main Winch Pull Force: 230kN
Max. Operating Pressure: 35MPa
Local Service Location: Philippines, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, South Korea, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan
Certification: ISO9001 CE
Basic Infomation
Certification: ISO9001 CE
Payment & Shipping Terms
Packaging Details: One is nude packing and overall transport by sea with roll-on-roll-off ship.(L*W*H=13860*2900*3500 mm); The other is host in the flat rack,(L*W*H=9782*2800*3070 mm); kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, powe
Supply Ability: 10 Set/Sets per Month hydraulic rotary drilling rig machine price in philippines
Product Description
Products Description
The KR300DS drilling rig in short mast configuration has a working height of only 11m. allowing the rig to be used in low headroom areas under bridges, power lines inside buildings, etc.
Technical Specification
Technical Specification of KR300DS Rotary Drilling Rig
Type
KR300DS
Torque
320 KN.m
Max. diameter
2000 mm
Max. drilling depth
26m
Speed of rotation
6~26 rpm
Max. crowd pressure
220 kN
Max. crowd pull
230 kN
Main winch line pull
230 kN
Main winch line speed
80 m/min
Auxiliary winch line pull
110 kN
Auxiliary winch line speed
75 m/min
Stroke(crowd system)
2000 mm
Mast inclination(lateral)
±5°
Mast inclination(forward)
5°
Max. operating pressure
35 MPa
Pilot pressure
3.9 MPa
Travel speed
1.5 km/h
Traction force
550 kN
Operating height
11087 mm
Operating width
4300mm
Transport height
3590 mm
Transport width
3000 mm
Transport length
10651 mm
Overall weight
76 t
Engine
Model
Cummins QSM11
Cylinder number*diameter*stroke(mm)
6*125*147
Displacement(L)
10.8
Rated power(kW/rpm)
280/2000
Output standard
European III
Kelly bar
Type
Interlocking
Section*length
7*5000(standard)
Depth
26m
Construction Photos
Packing & Shipping
Our Advantages
Our Advantages
Obtained more than 40 patents and exported to more than 40 countries.
A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.
Customer Visit
Exhibition
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
