I. Application

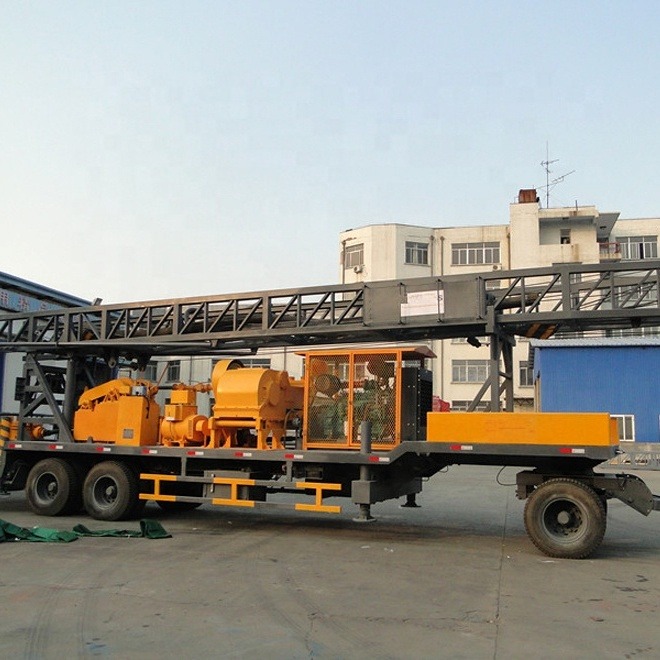

This is a rotary table water well drilling rig ;
It is widely used for water well, geothermal well, irrigation well, bridge conservancy, etc.
II. Features
* Power supply: diesel engine or electric motor as options;
* Mobile base: It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
* Mud pump: with much larger water flushing rate, with better scraps cleaning effects.
* For different stratum: soil, sand, gravel, rocks.
It can work with Triwing bit for soil and sand, and tricone bit for rocks and hard rocks.
And this machine can work with DTH Hammer if add a compressor in Rock stratum.
Drilling depth(M) | 600 | ||
Drilling diameter(mm) | 200-500 | ||
Single rope lifting capacity of main windlass(T) | 5 | ||
The capacity of main windlass(T) | 30 | ||
Single rope lifting capacity of hydraulic windlass(T) | 4 | ||
The capacity of hydraulic windlass(T) | 16 | ||
The lifting capacity of hook(T) | 36 | ||
Bearing capacity of mast (T) | 36 | ||
The height of mast (mm) | 12500 | ||
Bearing capacity (t) | 36 | ||
Drill Pipe | Kelly bar(mm) | 108×108×7500 | |
Assistant pipe (mm) | 89×10×6000 | ||
Weight (kg) | 19340 | ||
Diesel power | 140Kw | ||
Transport size (L*W*H) (mm) | 12460*2490*3440 | ||
III. Drilling accessories
IV.Machine delivery site
Ports or Factory
V. After-sale service
*One year quality
* Training: operation manual, overseas installation is also available;
* Spare parts are available in our factory at cost price for former customers;
* 24 hour on-line guidance for operation and maintenance.
