Pile Driving Folding Type Helical Diesel Hydraulic Pile Auger Ram For Highway Guardrail

1 set
MOQ
Pile Driving Folding Type Helical Diesel Hydraulic Pile Auger Ram For Highway Guardrail
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Home Use, Construction Works , Energy & Mining, Other
Showroom Location: United States, Pakistan, Chile, South Africa, Kazakhstan, Uzbekistan, Australia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Efficiency: High Efficiency
Piling Speed(m/min): 17-40
Weight: 22000 Kg
Dimension(L*W*H): 8600*2300*3400 Mm
Warranty: 1 Year
UNIQUE SELLING POINT: Fully Hydraulic System
Product Name: Pile Drilling Machine
Application: Pile Driving
Max. Output Torque: 80 KN .m
System Pressure: 35 Mpa
Type: Hydraulic Sheet Pile Driver
Usage: Pressing Pile
Operating Principle: Hydraulic Static Pressure Pile Driver
Suitable Pile: Concrete Precast Pile
Advantages: Fast Pile Driving Speed
Keywords: Pile Driver
Basic Infomation
Payment & Shipping Terms
Packaging Details: Full Container for Pile Driver
Product Description

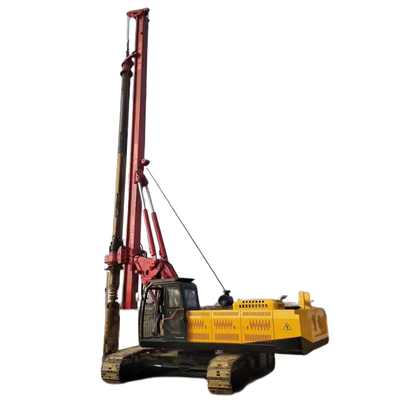

 Hydraulic rotary press pile driver

Product Description







Brief Introduction
DS series pilling machine lock rod rotary drilling rig uses hydraulic crawler type telescopic chassis, self-propelled folding drill collar, telescopic drill pipe and other technical applications. It is a construction machine suitable for hole forming in building foundation engineering. It is mainly suitable for soil layer construction such as sand, cohesive soil and silty soil. It is widely used in various foundation construction such as cast-in-place pile, continuous wall and foundation reinforcement.


Description

DS-15

DS-20

DS-25

DS-30

Max. Drilling Diameter

1800mm

1800mm

1800mm

1800mm

Max. Drilling Depth

15m

20m

25m

30m

Rotary Drive

Max. output torque

80kN .m

80kN .m

80kN .m

80kN .m

Rotary speed

17-40r/min

17-40r/min

17-40r/min

17-40r/min

Hydraulic System

System pressure

35Mpa

35Mpa

35Mpa

35Mpa

Oil Tank capacity

380L

400L

425L

450L

Mast

Height of mast

10,000mm

10,000mm

11,500mm

12,500mm

Inclination left/right

2-3°

2-3°

2-3°

2-3°

Inclination front

5°

5°

5°

5°

Overall Drilling Weight



22T

24T

26T

28T

Dimension



Working (L*W*H)



Transportation

condition

(L*W*H)

4800*2300*9600

8600*2300*3400

(mm)





5700*2600*10500

9610*2600*3500

(mm)





5700*2600*11500

10100*2600*3500

(mm)





6000*2600*12500

11600*2600*3500

(mm)



Machine performance

1. Adopting the upper guide frame structure to ensure the verticality of the drill pipe and the ground, the construction is more convenient, the construction efficiency is improved, and the safety is increased.
2. The patented structure of the power head is reasonable in design, reliable in lubrication, powerful in power, cost-saving, and not easy to damage, easy to repair.
3. The folding mast structure is adopted, the structure is simple and exquisite, the durability is good, the stability of the whole machine is good, the cost is saved and the maintenance is more convenient.
Main winch: The original imported hydraulic motor is sensitive and can be freely lowered. The lifting speed can reach 82m/min, which greatly improves the construction efficiency. The main hoist is placed in the right front of the operator, so that the operator can observe the working condition of the main hoist at any time to avoid the disorder of the rope caused by other factors.
4. Configure the national standard high-power external power system, the national inspection-free raw materials, supporting parts, the quality is more secure;

Company Information

 Henan Disy Machinery Co., Ltd. It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.

Sales and Service Ne

Our Services

1. Good quality control.

2. Highly competitive prices.

3. State-of-art technology products.

4. Our well drilling rig sales in China first, China's largest well drilling rig manufacturer.

5. Smooth communication.

FAQ



1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, pile drivers, etc.

The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.



2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.



3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support video inspection.



4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance.

If you need, we can send our engineers to your workplace and provide training for your employees.



5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.



6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
