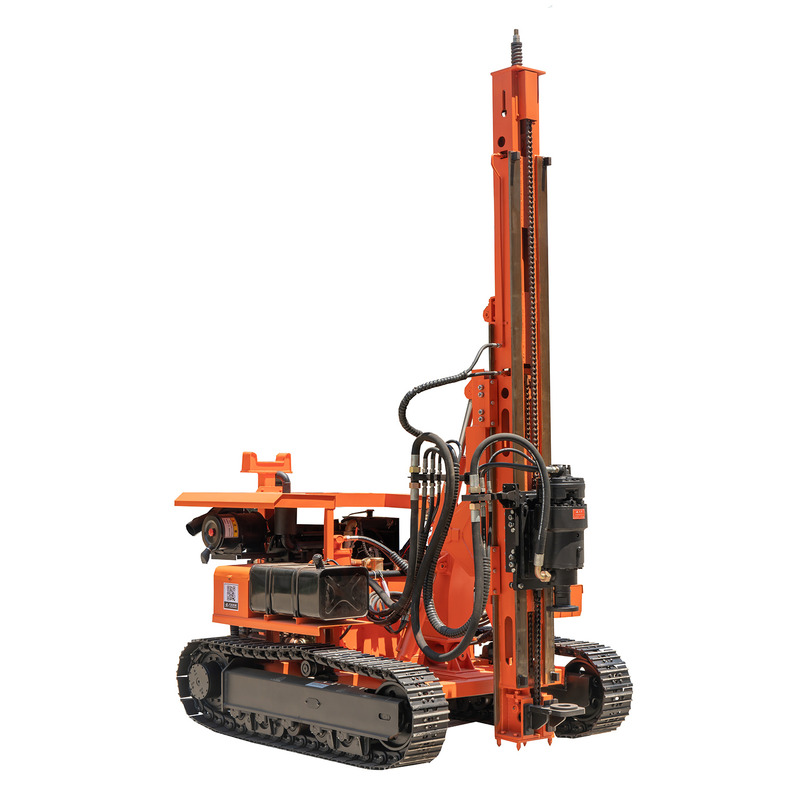

hydraulic anchor drilling rig blasting rock drilling rig
GM168Y high air pressure crawler open-air DTH Drill Rig has the advantages of low energy consumption, high efficiency, convenient field performance and transportation, the machine actions are realized by hydraulic system, only DTH hammer uses wind, so it greatly saves the cost for air compressor. The new type of rotary power head can supply and maintain strong rotary torque output during the blasting hole drilling construction. When this drilling machine dragging air compressor, they are flexibility, strong climbing ability, suitable for rugged field operation, and convenient for holes drilling.
The drilling rig has the advantages of high drilling efficiency, easy maintenance and high reliability. It is an ideal drilling rig for mining, anchoring, road building, water conservancy, power station construction and so on.
Technical parameters
|
Rotation Speed(Rpm) |
80 |
|
Rotary torque(Nm) |
3500 |
|
Mast compensation (mm) |
1200 |
|
Propel speed(M/s) |
0.6 |
|
Maximum propel(Kn) |
12 |
|
Maximum pull(Kn) |
26 |
|
Mast length(mm) |
5350 |
|
once promotion(mm) |
3200 |
|
Walk speed(Km/h) |
3 |
|
Chassis floating(°) |
10 |
|
Chassis height(mm) |
330 |
|
Climb ability(°) |
30 |
|
Diesel engine |
Cummins |
|
Transport dimension(mm) |
5350*2310*2450 |
|
Hole size(mm) |
80--150 |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
