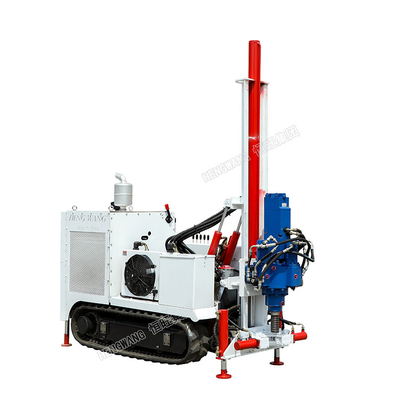

Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite

3 Pieces
MOQ
$69,230.00(3 - 7 Pieces) $68,230.00(>=8 Pieces)
Price
Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Retail, Construction Works
Showroom Location: Saudi Arabia, Thailand, South Africa, Australia
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 380V
Dimension(L*W*H): 2550*950*4220mm
Weight: 1.8 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, Engine
Key Selling Points: Automatic
Drilling Diameter: 200mm
Drilling Depth: Max.50m
Mobility: Yes
Core Depth: 0-30m
Drilling Form: Direct Push
Casing Diameter(mm): 52/63/76/95
Sampling Diameter(mm): 38/52/65/70
DTH Depth(m): 0-200
Drilling Diameter(mm): 38-180
Effective Stroke(mm): 1650
Engine: Joint Venture Brand 40KW/3000r/min
Hydraulic Pump: Imported Plunger Pump
Maximum Lifting Force: 10T
Basic Infomation
Payment & Shipping Terms
Packaging Details: Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite
Supply Ability: 1000 Piece/Pieces per Month Crawler mounted soil core sampling drill rig hydraulic core dril
Product Description
Product Description
Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite
this drill rig adopts the direct push method to push the casing into the soil, without water injection, it can continuously and quickly take out the columnar soil samples at a specific depth without external interference. Long-term monitoring Wells can be set up to monitor the open water pollution according to the water intake depth requested by the project.
The crawler direct push soil sampling rig has the advantages over the traditional percussion and rotary drilling rig in soil drilling sampling, the volume is small and the sampling speed is fast, high efficiency, the sample obtained is undisturbed, and there is no need for water!Sampling in some special terrain or special environment is suitable, the sampling system used can obtain many different types of samples such as soil, silt, and so on.
Technical Parameter
Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite
Model
HWED30
Core depth
0-30m
Drilling form
Direct push
Casing diameter（mm）
52/63/76/95
Sampling diameter(mm)
38/52/65/70
DTH depth（m）
0-200
Drilling diameter（mm）
38-180
Effective stroke（mm）
1650
Engine
Joint venture brand 40KW/3000r/min
Hydraulic pump
Imported plunger pump
Multi-way valve
Imported brand
Machine tubing
Made in German
Maximum lifting force
10T
Drilling force
0-6.5 T
Direct push frequency
600-2000/bmp
Walking motor
Imported brand
Transport size
2600*950*1700mm
Working size
2550*950*4220mm
Total Weight
1.8T
Walking speed
0-5 km/h
Maximum climbing angle
35 º
Remote control
Optional
Products Details
Crawler mounted soil core sampling drill rig hydraulic core drilling machine in granite
* 1.Drill rig pushes directly to make sampling

* 2.The drilling rig without rotary is not necessary to add water

* 3.It is to make samples with double tubes and sample reach directly into inner tube without contamination

* 4.It is equipped with leak proof plug and leak proof connecting rod to realize leak proof

* 5.It can make Max. 30m depth sampling

* 6. 120mm diameter sampling (sampling depth will be reduced)
The core sample drill not only can sampling soil but also DTH drilling, the Dth drilling depth is 200m, the diameter is 38-180mm.
The engine of the rig is joint venture brand, and the main important parts (Hydraulic pump, multi-way valve) imported from famous company. Machine tubing made in German.
The environment core sampling drilling rig has good performance and more popular in the domestic market, we are sure you will make a high efficiency in the sampling project!
