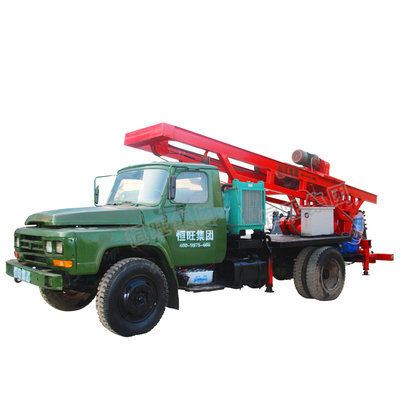

Factory well drilling manufacturers direct supply truck-mounted reverse circulation well drilling rig

1 Set
MOQ
Factory well drilling manufacturers direct supply truck-mounted reverse circulation well drilling rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Coal
Voltage: 380V
Dimension(L*W*H): 9200*2500*3500mm
Weight: 12000kg
Warranty: 1 Year
Local Service Location: None
After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support
Certification: CE,ISO
Drill Holedepth (m): <300
Spindle Speed (r/min): 9
The Hole Diameter (mm): 550-2500
Spindle Power (kw): 7.5*2
Hoist Lifting Force (kg): 3000*6
The Spindle Torque(N.m): 22000
Mud Pump Power: 30kw
Main Power Supporting Power: 6110 Diesel Engine
Mud Pump Flow: 500
Product Name: Direct Supply Truck-mounted Reverse Circulation Well Drilling Rig
Basic Infomation
Certification: CE,ISO
Payment & Shipping Terms
Product Description
Factory well drilling manufacturers direct supply truck-mounted reverse circulation well drilling rig
Product Description
REVERSE CIRCULATION RIG




The impact frequency of reverse circulation rig is 40 times /min, the main and the auxiliary hoisting capacity is 30kN, the motor power is 45kW, not include 6BS pump. The weight of the shot bit is 4T, and it equipped with overall cast-iron,has impact resistance, stronger impact force, high drilling efficiency, used for drilling hole diameter 800-1500mm.The main and the auxiliary hoisting capacity of reverse circulation rig is 50kN, maximum drilling
hole diameter is 2.0m and drilling hole depth is 80m,lifting stroke of hoist is 1.5-3.0m,main power is 75kW.The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement.
In addition to the impact of the drill tip wear-resistant materials, the remaining 50mm welded steel plate, can also be equipped with a variety of specifications drill. It is suitable for complex foundation engineering construction, such as soil layer, cemented gravel and rock socketed,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.
Technical Parameters
Reverse circulation rig parameter
Model
HF-150
HF-200
HF-250
Drill holedepth (m)
<180
<220
<300
The hole diameter (mm)
350-1800
450-2000
550-2500
Spindle speed (r/min)
11
9
9
Spindle power (kw)
11
11
7.5*2
The spindle torque(N.m)
12000
12000
22000
Hoist lifting force (kg)
3000*6
3000 * 6
3000*6
Mud pump
Flow
300
300
500
Power (kw)
22
22
30
Generatingset
Tlierated voltage (V)
380
380
380
Rated current (A)
90
90
90
Rated speed (r/min)
1500
1500
1500
Rated power (kw)
50
50
75
Main power supporting power
4105-6105Diesel Engine
4105-6105Diesel Engine
6110 Diesel Engine
Overall dimensions ( L*W*H) (mm )
9200X2500X3500
9200X2500X3500
9200*2500*3500
Single weight (kg)
12000
12500
15000
