Home Use 400m Truck Mounted Water Well Drilling Rig

1.0 Sets
MOQ
Home Use 400m Truck Mounted Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Home Use, Construction Works , Energy & Mining
Showroom Location: Pakistan, Thailand
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 24V
Dimension(L*W*H): 6500x2150x2700mm
Weight: 11000 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox, Other
Key Selling Points: High Productivity
Drilling Diameter: 450mm
Drilling Depth: Max.300m
Mobility: Tractor
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Online Support
Power: Diesel
Local Service Location: Thailand
Certification: ISO,CE
Basic Infomation
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: According to the customers' request
Supply Ability: 200 Set/Sets per Month
Product Description
Product Overview

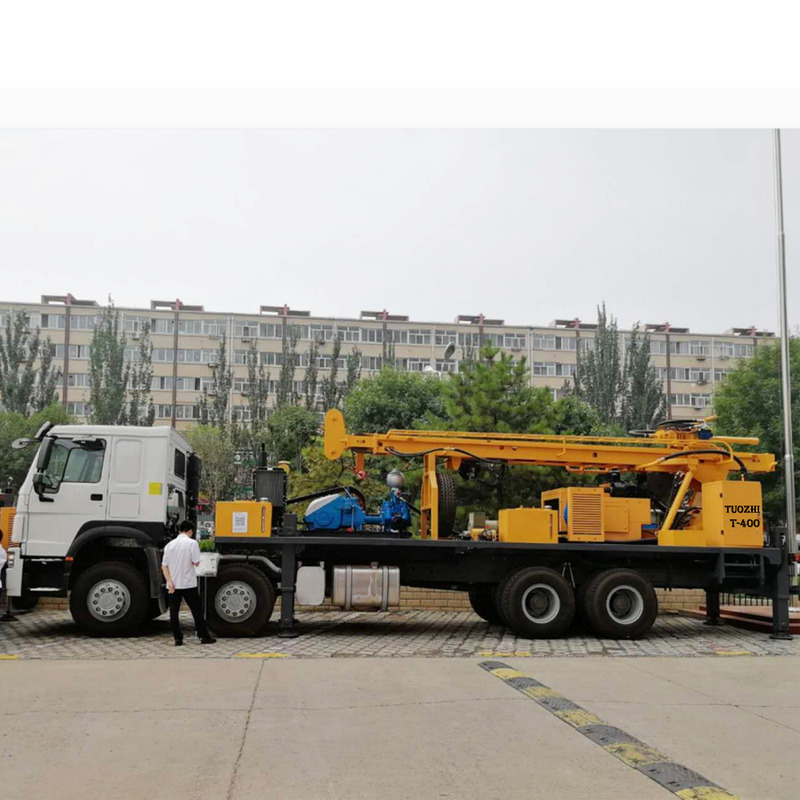

Truck mounted water well drill rig

Our truck mounted water well drill rig is a top drive high efficiency and multi-purpose hydraulic rig,featured with advanced technology,convenient using,high efficiency ,reliable and durable,been using widely in water well drilling,inspecting,relief wells,and other bore hole drilling,also good with ground source thermal pump conditioning hole drilling of city construction,coalbed methane,gas and oil exploration.this rig is drilling used compressed air power,drilling with casing,mud drilling and has high drilling speed in the rocks of general hardness f=6-20

Our Characteristics
1. Reasonable design,Easy to operation.
2. Travel motor / system: LKC Brand,Caterpillar, Daewoo, Doosan, Hitachi, Hyundai of supplier
3. Oil pipe: Original impoted
4. Oil atomizer: Japan Furukawa Brand,Ensure the hammer has a good lubrication effect
5. Cooling System of Rig: Independent radiator,Ensure hydraulic oil no overheat.Ensure hydraulic system provide strong power.And adapt to high temperature areas
6. Mast of Rig: Use wear-resistant materials and imported steel, ensure reliable and life
7. Built in option:mud pump / generator /foam pump/welding or compressor.also loading more drilling tools
8. We accept Customer special customization
PRODUCT SPECIFICATIONS
Model
T-400
T-500
T-600
Max drilling depth
400
500
600
Drilling diameter
105-325mm
105-400mm
105-450mm
Air pressure
1.2-3.5Mpa
1.2-3.5Mpa
1.6-6Mpa
Air consumption
16-55m3/min
16-55m3/min
16-75m3/min
Drill pipe length
6m
6m
6m
Drilling pipe diameter
89/102mm
102mm
102mm
Axial pressure
4T
6T
6T
Lifting force
22T
28T
38T
Fast lifting speed
29m/min
29m/min
30m/min
Fast feeding speed
56m/min
48m/min
62m/min
Max rotary torque
8000/4000Nm
10000/5000Nm
11000/5500Nm or
13000/6500Nm
Max rotary speed
75/150 R/min
75/150 R/min
105/210 R/min
Big winch lifting force
Little winch lifting force
1.5T
1.5T
2.5T
Drilling efficiency
10-35m/h
10-35m/h
10-35m/h
Weight
9.5T
10.5T
13.5T
Rig of Dimension
6.2x1.85x2.55m
6.2x1.85x2.55m
6.3x2.25x2.65m
Drilling method
To drive hydraulic rotary and pushing hammer or mud drilling
PRODUCT CONFIGURATION
Yuchai or Weichai high power engine
Imported EATON control valve
Imported EATON Rotation motor
