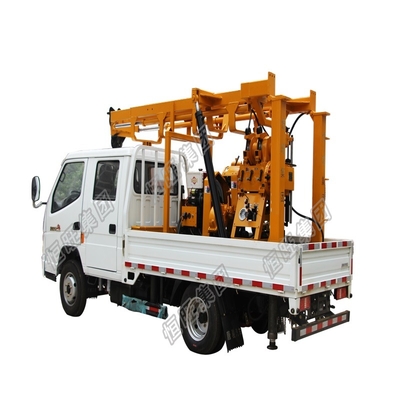

Construction works   200m Truck Mounted Water Well Bore Drilling Rig - LUHENG

1 Set
MOQ
$25,200.00(1 - 2 Sets) $23,000.00(>=3 Sets)
Price
Construction works   200m Truck Mounted Water Well Bore Drilling Rig - LUHENG
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Philippines, Brazil, Peru, Indonesia
Condition: New
Type: Hydraulic Well Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 220V/380V
Dimension(L*W*H): 2500*900*1500 Mm
Weight: 1800 Kg
Warranty: 1 Year
Name: Truck Water Well Drilling Rig
Maximum Open Hole Caliber: 300 Mm
End Hole Caliber: 75 Mm
Drill Rod Caliber: 60 Mm
Spindle Speed: Forward 30-1050 R/min,reverse 29-137 R/min
Spindle Stroke: 600 Mm
Max.single Line Lifting Capacity: 4000 Kg
Wirerope Caliber: 12.5 Mm
Wirerope Lenght: 50 M
Reel Diameter: 300 Mm
Local Service Location: Philippines
After-sales Service Provided: Video Technical Support, Online Support
Certification: ISO9001,CE
Basic Infomation
Certification: ISO9001,CE
Payment & Shipping Terms
Packaging Details: wooden case for 200m truck mounted bore water well drilling rig
Product Description
Product Description

Truck mounted drilling rig Water Well Drilling Rig portable drilling rig

HW Ttruck-mounted drilling rig is a kind of truck-mounted drilling rig designed to meet the needs of high-speedhigh efficiency and high mobility.the machine is reasonable in structure ,simple in operation,convenient in maintenance and convenient in transportation,and no need to lift by crane after it is transported to site.it is suitable for geological survey exploration,basic exploration of roads and high-rise buildings,and various concrete structure inspection hole,river embankments,subgrade grouting hole and direct grouting,civil water wells and ground temperature central air conditioning.
Main parameter
200m truck mounted bore water well drilling rig Parameter
Model
HW230C
Drilling depth
30-230m
Drilling hole diameter
300-75mm
Driling angle
90-75°
Spindle speed
64-557r/min
Spindle stroke
450mm
Max.winch lift capacity
1600kg
Main winch steel wire capacity
35m
Reel lifting speed
0.12-0.95m/s
Steel wire diameter
12.5mm
Drill rig Weight without engine
6500mm
Diesel engine of drill rig
970kg
Mud pump model
ZS1115/14.7KW/2200rpm
Truck chassis
Tangjun light truck
Truck driver mode
4*2 wheeled
Truck engine
70kw
Main features:
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
Detailed Images

Work case of various hydraulic well drill rig as follows

HW160/190/230 well drilling machine

water well drill rig in Malaysia

water well drilling machine in Thailand

HW160T/190T/230T trailer mounted well drill rig
trailer mounted water well drilling rig in Phillippines
tailer well drilling rig machine in Algeria
HW160L/190L/230L crawler well drill machine
well drilling rig machine in China
drilling well in China

HW160C/190C/230C truck mounted well drill machine

truck mounted well drill equipment in Mongolia

truck mounted well drill rig in India

Packing&Shipping
Company Introduction
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of well drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
FAQ

200m truck mounted bore water well drilling rig

Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc

Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
