Construction works   Well manufacturer Xuzhou XSC10/500 deep water drilling rig 1000m truck mounted drilling rig price

1.0 Pieces
MOQ
Construction works   Well manufacturer Xuzhou XSC10/500 deep water drilling rig 1000m truck mounted drilling rig price
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Philippines, Peru, Indonesia, Algeria, Bangladesh, Uzbekistan
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Water Well
Dimension(L*W*H): 12340x3955x16850mm
Weight: 36000 KG
Warranty: 1 Year
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine
Key Selling Points: Best Price
Drilling Diameter: Other
Drilling Depth: Max.1000m
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard export packing
Supply Ability: 15 Piece/Pieces per Month
Product Description
Buying Guides

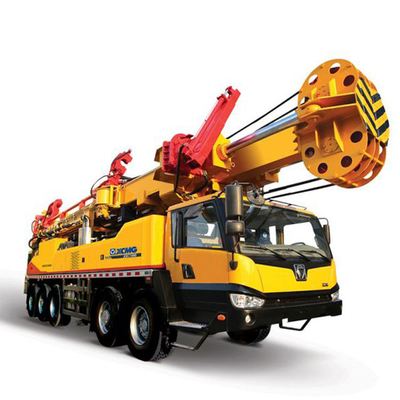

Xuzhou manufacturer deep water well drilling rig XSC10/500

1000m truck mounted drilling rig price

Product Description

XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.

The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.

Main Parameter

Parameter Units XSC10/500
Drilling capacity Max. drilling depth m 1000(Φ89)
Max. drilling diameter mm Φ500
Feeding system Max. lifting capacity kN 500
Max. feeding capacity kN 150
Max. lifting speed m/min 27
Max. feeding speed m/min 61
Stroke mm 7600/12200
Top drive Max. torque N·m 14500
Speed r/min 150
I.D mm Φ76
Floating distance mm 70
Max. tilting angle o /
Deck engine Type / CUMMINS QSB5.9-C210
Rated power kW 154
Main winch Hoisting capacity kN /
Tool winch Hoisting capacity kN 45
Breakout device Max. breakout torque kN 45000
Vise clamping range m/min 0~200
Mud pump Max. flow L/min 1200
Max. pressure MPa 11
Foam pump Max. flow L/min 50
Max. pressure MPa 10
Mud pipe I.D mm Φ76
Max. pressure MPa 15
Chassis Drive mode / 8x4 Automobile Chassis
Rated power kW 279
Highest speed km/h 70
Max. climbing gradient % 50
Working dimension mm 12340x3955x16850
Transportation dimension mm 16000x2500x4000
Weight t 36
