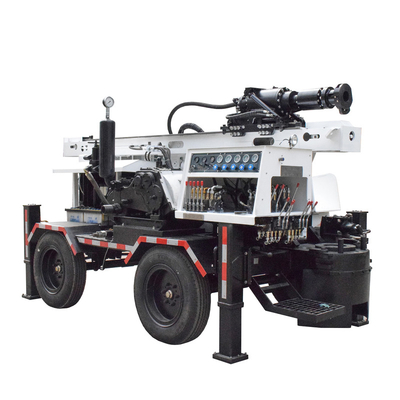

high efficiency trailer mounted geothermal borehole drilling equipment SLY510
SLY510 deep rock water well borehole drilling machine Dth and drilling machineis lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connectedwithavarietyofengineeringrequirements
Main technical parameters.
|
Technical parameters and specification |
|
|
Drilling diameter (mm) |
100-300 |
|
Drilling depth (m) |
260 |
|
Work Pressure(Mpa) |
1.05-3.0 |
|
Consumption (m³/min) |
16-30 |
|
Drill pipe length (m) |
2 |
|
Drill pipe diameter (mm) |
76 |
|
Dimensions(mm)(L*H*W) |
5425*2250*2470 |
|
Footage efficiency(m/h) |
5-20 |
|
Travelling speed(Km/h) |
0-2.5 |
|
Total weight(t) |
6 |
|
Feed systems |
|
|
Axle pressure (N) |
40820 |
|
Lifting power (T) |
6.5 |
|
Rotary torque (Nm) |
3900 |
|
rotary speed |
0-130 |
|
Host Power (Kw) |
87 |
|
Mud pump |
BW450/5 |
|
Flow rate |
450L/min |
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in standard packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government ,and verified by Ali baba Trade Assurance. 100% refund of the Trade Assurance Amount .Alibaba can guarantee all of you payment .Just order from US !
