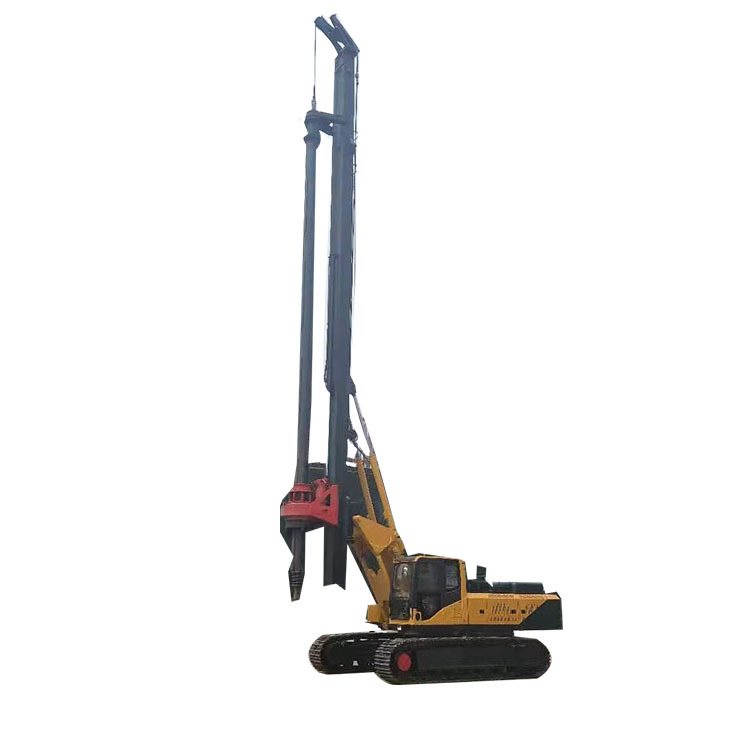

High Drilling Efficiency Xinfa Manufacturer Xf 11 Small Hydraulic Rotary Drilling Rig Price

1 Piece
MOQ
$50,000.00(1 - 4 Pieces) $45,000.00(5 - 9 Pieces) $20,000.00(>=10 Pieces)
Price
High Drilling Efficiency Xinfa Manufacturer Xf 11 Small Hydraulic Rotary Drilling Rig Price
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Usage: Ore
Weight: 1000 KG
Warranty: 1 Year
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, Engine, Gearbox
Key Selling Points: High Productivity
Drilling Diameter: 50mm, 75mm, 60mm, 100mm, 450mm
Drilling Depth: Max.20m
Drilling Diameter: 500-100mm
Product Name: 10m-50m Small Hydraulic Rotary Drilling Rig Price
Feature: High Drilling Efficiency
Color: Custmized
Total Weight: 12t
Track Shoe Width: 500mm
Engine Model: Yuchai
Engine Power: 110kw
Power Head Torque: 26000-30000kn.m
Maximum Stroke: 11-12m
Local Service Location: None
After-sales Service Provided: Video Technical Support, Online Support
Certification: ISO9001;CE
Basic Infomation
Certification: ISO9001;CE
Model Number: Yuchai
Payment & Shipping Terms
Supply Ability: 20 Piece/Pieces per Month
Product Description
Product Description
Xinfa Manufacturer Xf11 Small Hydraulic Rotary Drilling Rig Price
Specification
model
XF-11
XF-13
XF-15
XF-18
XF-20
Operating mode
Pressure drill
Pressure drill
Pressure drill
Pressure drill
Pressure drill
Pressure drill
Drilling diameter
mm
500-100
Drilling depth
m
10
12
14
17
19
Dimensions
m
8.50*2.20*2.80
9.20*2.20*2.80
8.50*2.20*2.95
8.50*2.20*2.95
8.40*2.30*2.95
Total Weight
t
12
12.5
13
13.5
Track shoe width
mm
500
engine
model
/
Yuchai
power
kw
110
Rotating speed
r/min
2200
Power head torque
kn.m
26000-30000
Power head speed
r/min
30-50
Maximum lifting force
kn
150
Maximum stroke
m
11-12
Wire rope diameter
mm
18
Rotation angle
°
360
Walking speed
km/h
2-5
Maximum grade
°
25
Optional
Weichai/Yuchai/Cummins engine
Company Profile
FAQ
Q1- Is the MOQ negotiable?

A1- Yes, MOQ is negotiable, while the unit price is different according to the order quantity.

Q2- How long is the lead time?

A2- Lead time depends on the order quantity. Normally 15-25 days and special case 40-50 days in sales peak season. Please contact
us for details.

Q3- Can you make the according to my design?

A3- Yes, we can. Please contact us with your requirement or CAD drawing.

Q4- Can I arrange third party inspection?
Shandong Xinfa Machinery Co., Ltd. is located in Jining City, Shandong Province,China. It is a professional manufacturer and exporter of heavy construction machinery and mining machinery .The company mainly produces various types of crawler excavators,wheel excavators,road rollers, rotary drilling rig ,bulldozers etc. We also supply famous brands heavy machines . Wtih strong technical development team, strict production management system and standard assembly production line ,Xinfa aims at satisfying the machinery needs from all over the world and solving their problems too .We help people build .Good quality,excellent service ,fast response are always what we pursue.
