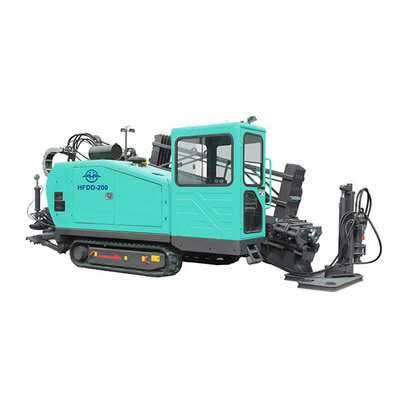

Horizontal directional drilling machine
Model: HFDD-200
Cummins QSB5.9-C150
Rated power (kW/r/min): 113/2200
Maximum push-pull force (kN): 225
Technical features
1. Hydraulic pilot control, with comfortable operability and flexible adjustment ability, 1. Hydraulic pilot control, with comfortable operability and flexible adjustment ability, first-class brand hydraulic components to ensure the reliability of the whole hydraulic system;
2. XCMG's proprietary patented power head floating and vice floating technology can greatly protect the drill pipe thread and improve the service life of the drill pipe;
3. The whole machine has passed CE safety certification, which ensures safety and safer construction.
Technical parameters
|
Engine |
Model |
CumminsQSB5.9-C150 |
|
Rated power |
113/2200 kW/r/min |
|
|
Push and pull |
Maximum pushing force |
225 kN |
|
Maximum push-pull speed |
32 m/min |
|
|
Rotate |
torque |
6350N.m |
|
Maximum speed |
160 r/min |
|
|
Mud pump |
Maximum flow |
250 L/min |
|
Maximum pressure |
8 MPa |
|
|
Drill pipe |
60*3 mm*m |
|
|
Truck mounted crane |
Lifting weight |
/ t |
|
Lifting moment |
/ t.m |
|
|
Max. penetration angle |
22° |
|
|
Max. back expansion diameter |
600mm |
|
|
Quality |
8.5t |
|
|
Overall dimension |
5900*2250*2400mm |
|
|
Optional |
1 cab; 2. Heating and cooling air conditioning; 3 Automatic grip (drill pipe box); 4 Semi-automatic grip; |
|
Remarks: This product is continuously improved with the progress of technology. The differences between the above listed parameters and structural characteristics and the real object shall be subject to the real object.
Jiaozuo Hanfa Industrial Co., Ltd. belongs to Hanfa Group. Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. It has experienced engineers, professional R&D team, special after service team, world class sophisticated Machine and advanced technology guarantee the best quality drilling Machine and best service to its customers.
We pursue high standard manufacturing and qualified products. It has more than 20 species such as water well Down The Hole Drill Rig, core Down The Hole Drill Rig, engineering Down The Hole Drill Rig, DTH Down The Hole Drill Rig, horizontal directional Down The Hole Drill Rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc.
Pre~Sales Service After~Sales Service
» Inquiries and consulting support » Training how to instal machine
» Customized service » Accessories service
» View our factoty » Engineers available to service overseas
Jiaozuo Hanfa Industrial Co., Ltd
Kindly inform us the following information:
1. Application
2. Drilling object(rock/soil/sand, etc)
3. Drilling diameter
4. Drilling depth
Then we could recommend the suitable model with favorable price.
