When communities count on you for water, power and internet, you need to be able to count on your utility installation equipment.
Utility installation is critical to community development. You need to be able to work in the most rural, remote areas; the most congested, populous cities; and in a range of ground conditions — from hard rock to clay and cobble.
SHANDONG TANGMIHANBEI IMPORT AND EXPORT CO., LTD offers a complete lineup of high-quality utility installation equipment, including horizontal directional drills, trenchers, pipe jacking machine, vacuum truck, mini skid steers, reclaimer, mud pump, slurry mixing system and a wide range of HDD tooling and accessories.

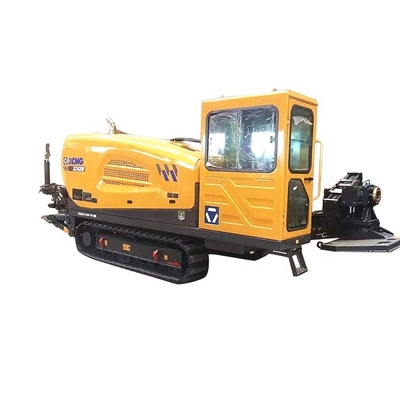

XZ320D HDD RIG PARAMETER:
|
XZ320D HORIZONTAL DIRECTIONAL DRILL |
||
|
ITEM |
PARAMETER |
|
|
Engine |
Make |
Cummins |
|
Model |
QSB5.9-C210 |
|
|
Rated Power |
154 KW / 2200 R/Min |
|
|
Operation |
Type |
Rack and pinion |
|
Max. Thrust /Pullback Force |
320/320 KN |
|
|
Max carriage thrust/pullback travel speed |
22M/Min |
|
|
Max. Spindle Torque |
12000 N·M |
|
|
Max. Spindle Speed |
140 R/Min |
|
|
Type |
Self-Propelled Steel Track |
|
|
Ground Travel Speed |
3.0 Km/h |
|
|
Drill Rod/ Drill pipe |
Diameter ×Length |
Φ73 mm×3000mm |
|
Entry Angle |
10~20° |
|
|
Mud Pump |
Max flow rate |
320L/Min |
|
Max pressure |
8 |
|
|
Overall Weight |
10T |
|
|
Overall Dimension |
6500×2250×2450mm |
|
