About Us:
•More than 10 years HDD drilling machine factory running-well management experience.
•Covers an area of 50000 square meters and has 200 employees.
•Production capacity is 2000 sets of equipments per year.
•Our IR series of HDD machine has been exported to Australia, Brazil, India, Malaysia, Philippines, Thailand, United Arab Emirates and 20 countries and regions.

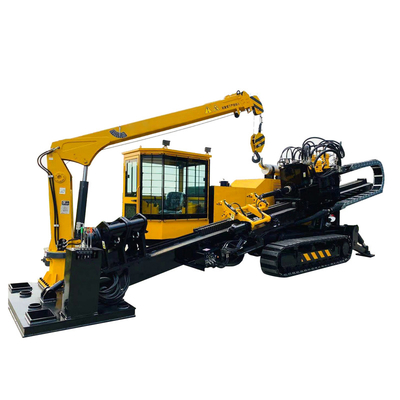

Inground Revolution hdd machine IR1200 horizontal directional drilling rig
| Technical Parameters of IR1200 | |
| Pullback Capacity | 1200 KN |
| Thrust Capacity | 1200KN |
| Spindle Torque(max) | 25000 N.m |
| Spindle Speed | 0-140 r/min |
| Incidence Angle | 11-20° |
| Operating Weight | 25000KG |
| Overall Size(LxWxH) | 11500×2550×2650 mm |
| Engine Model | COMMINS |
| Engine Type | Turbo-charging, 4 strokes, 6 cylinders water cooling |
| Engine Rated Power | 194KW/2200rpm |
| Size of Drill Pipe | Φ114mm*6000mm |
| Max Flow Rate of Mud Pump | 800 L/min |
| Max Pressure of Mud Pump | 8 Mpa |
| Warranry | 1 year or 2000 hours |
CUMMIMS turbo charging engine, reliable performance and low oil consumption,applicative for most severe environment.
Gear BoxRack and pinion system with fast /slow speed, can provide stable and powerful force. |
Opening design clamp could be observed directly and make drill pipe changing easier.
Rubber Track
Rubber track make zero harm to road.
We has a group of experienced engineering and technical personnel and a strong sense of responsibility and perfect quality assurance system, production of the most professional technology, the most complete products, product performance and quality.
| Delivery Time | 15 days for 1 set, 30 days for 5 sets |
| Packing Type | wooden cases or steel support |
| Transport | by Sea or according to customer's requirement |
| Contact Person : | Lena |
|---|
