Laying Technology No-Dig Horizontal Directional Drilling HDD Rig Machine 6600kN 32m/min

1 Set
MOQ
$520,000.00(>=1 Sets)
Price
Laying Technology No-Dig Horizontal Directional Drilling HDD Rig Machine 6600kN 32m/min
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Applicable Industries: Construction Works , Energy & Mining
Weight (KG): 25000
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Pump
UNIQUE SELLING POINT: High Digging Power
Product Name: Horizontal Directional Drilling Machine
Application: Pipe Laying Hdd Rig
Key Word: Trenchless Drilling Rig
Engine: 2*410/1900 2*565/1850kW/r/min
Maximum Pushing Force: 6600 KN
Maximum Push-pull Speed: 32 M/min
Torque: 180000 N.m
Maximum Speed: 90r/min
Mud Pump: External 20 MPa
Drill Pipe: 168/194*9.6 Mm*m
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard export packing or as you needs
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

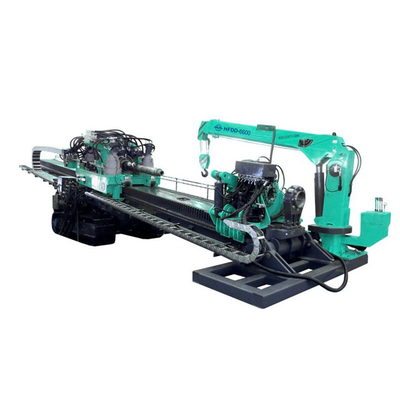

Laying Technology No-Dig Horizontal Directional Drilling HDD Rig Machine 6600kN 32m/min
Model: HFDD-6600
Cummins QSL8.9-C360| VolvoTAD1643
Rated power (kW/r/min): 2*264/2100
Maximum push-pull force (kN):6600

Technical features
 1. The digital display system can directly display the main construction parameters such as rotating torque and push-pull force, which overcomes the disadvantage of conversion of pressure gauge used by traditional drilling rig, and the operation is simple;
2. Dual power system. Any engine can complete all the actions of the drilling rig. Combined with the proprietary multi working condition speed regulation technology and the multi gear control technology of rotation and push-pull, the drilling rig has a wide range of application. In the case of small aperture construction, one engine can be used to work, with less fuel consumption and low construction cost;
3. Three cylinder clamping vise, reliable clamping of drill pipe and large shackle torque; The vise floats in the whole process to facilitate the construction process of casing method.
Technical Data
Engine
Model
Cummins QSL8.9-C360
VolvoTAD1643
Rated power
2*410/1900
2*565/1850kW/r/min
Push and pull
Maximum pushing force
6600 kN
Maximum push-pull speed
32 m/min
Rotate
torque
180000 N.m
Maximum speed
90r/min
Mud pump
Maximum flow
800 L/min
Maximum pressure
20 MPa
Drill pipe
168/194*9.6 mm*m
Truck mounted crane
Lifting weight
5t
Lifting moment
12.5 t.m
Max. penetration angle
16°
Max. back expansion diameter
2000mm
Quality
66t
Overall Dimension
19000*3200*3600mm
Optical
Split operation room
Working Principle
Recommend Products
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
