200m deep water wells drilling rig core drilling machines
Product Description
A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
Product Data
|
Technical parameters |
Unit |
200Y |
|
Drilling depth |
M |
200 |
|
Open hole diameter |
mm |
325 |
|
End hole diameter |
mm |
75 |
|
Drilling pipe diameter |
mm |
42-60 |
|
Drilling angle |
° |
90-75 |
|
Power |
Kw |
15 |
|
Weight |
Kg |
1150 |
|
Dimension |
mm |
2700×900×1600 |
|
spindle speed |
r/min |
557 |
|
Spindle stroke |
mm |
450 |
|
Single rope lifting force |
Kg |
2400 |
|
Single line lifting speed |
M/min |
0.12-0.95 |
|
Wire rope diameter |
mm |
12.5 |
|
Wire rope capacity |
M |
35 |
|
Rated load capacity |
T |
5 |
|
Effective height |
M |
6 |
|
Max pressure |
MPa |
2 |
|
Suction pipe diameter |
mm |
51 |
|
Outlet pipe diameter |
mm |
32 |

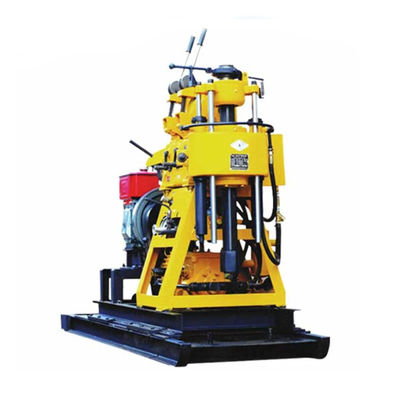

Product Photos
