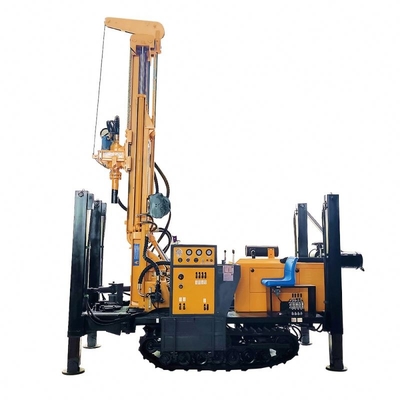

Home /Products/Crawler Drilling Rig/Construction works   200 Meters Pneumatic Crawler Mounted Water Well Drilling Rig Tunnel Crawler Drilling Rig

Construction works   200 Meters Pneumatic Crawler Mounted Water Well Drilling Rig Tunnel Crawler Drilling Rig

1 Set
MOQ
Construction works   200 Meters Pneumatic Crawler Mounted Water Well Drilling Rig Tunnel Crawler Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Dimension(L*W*H): 4000X1750X2450mm
Weight: 5800 KG
Warranty: 1 Year
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, Engine
Key Selling Points: Easy To Operate
Drilling Diameter: 90-350mm
Drilling Depth: Max.200m
Mobility: Move By Crawler
Product Name: Drilling Machine
Engine: 65KW
Drill Rod Length: 3m/pc
Drilling Method: Both Mud Pump Drilling And Air Compressor Drilling
Drilling Pipe Diameter: 76/89mm
Diesel Engine: 65KW Quanchai
Max Torque Of Rotary: 3500-4800Nm
Fast Feeding Speed: 35m/min
Mud Pump Flow: 200L/min (option)
High Hydraulic Leg: 1.5m
Local Service Location: None
After-sales Service Provided: Video Technical Support
Certification: CE,ISO
Basic Infomation
Certification: CE,ISO
Payment & Shipping Terms
Packaging Details: Our water well drilling rig will be packed in 20-foot containers
Supply Ability: 200 Set/Sets per Month
Product Description
Technical Data
Bore diameter(hammer)
90-350mm
Bore depth
200m
Air consumption
17-35m³/min
Air pressure
1.7-3.0Mpa
Pipe diameter
76mm/89mm
Pipe length
3m
Push force
4T
Lifting force
15T
Lifting speed
2.5m/min
Feeding speed
0.5-5m/min
Fast lifting speed
18m/min
Fast feeding speed
35m/min
Max torque of rotary
3500-4800Nm
Rotary speed
45-70r/min
Mud Pump flow
200L/min (option)
High hydraulic leg
1.5m
Feeding efficiency
10-35m/h
Travel speed
2.5Km/h
Climb ability
30°
Dimension(L*W*H)
4×1.75×2.45M
weight
5800Kg
Diesel engine
65KW Quanchai
Product Description
1.Product Description
MCD200J deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

2.Product Feature
Prodcut Name：
MCD200J Crawler Mounted Water Well Driiling Rig

Function:
Widely used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Advantage
1.Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any
time to meet the requirements of different drilling tool working conditions and different construction processes

2.Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.

3.Multifunctional drilling
Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more.The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.

4.High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various
drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is
high.

5.low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.

6.High outrigger and Tracked walking
The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.

7.Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.

8.Rig chassis
It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.

9.High configuration
The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.

10.Diesel engine
This drilling water machine adopt 65KW Quanchai engine

11.Lifting force
design composite tower, 3.4m long stroke, double cylinder lift capacity 15 ton .
Working Site
Packing & Delivery
1.Our workers will strictly implement our packing system to ensure that the products are not damaged during transportation.
2. There are many modes of transportation to ensure that products reach customers on time.
Delivery Way
Delivery Time
By air
About10-20 days days after leaving the port
By sea
About20-30 days days after leaving the port
Why Choose US?
1.WHO IS CHONGDA?
Henan Chongda Machinery Co., Ltd., located in Zhengzhou, has kept its record in Administration Bureau for Industry and Commerce. The company is a lawful operation. Located in central China, transportation convenience, advanced technology and scientific management guarantee our steady development.Our company owns national patents and proprietary technology with independent intellectual property right. We have a full set of manufacturing techniques and complete quality control devices. chongda has a professional team of engineers with rich experience in the design, production and inspection. We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment. We will keep to provide you professional and perfect service.

2.Our products have passed Multiple international certifications.
Our Service
1.Convenient method of payment
2.Individual service
①Video that teaches customers how to operate the machines will be upload on Youtube.
②. OEM/ODM Available.
③.Any inquiries will be replied within 12 hours.
④.Fastest delivery: Sample order in stock and 3-7 days for mass production.
