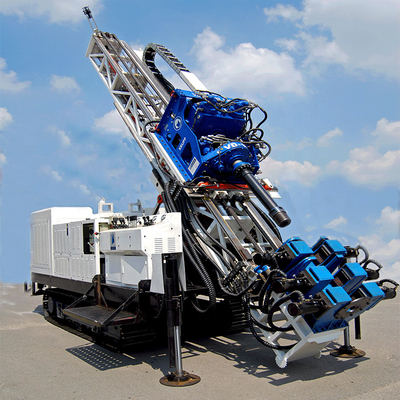

Low Cost Pneumatic Ultrasonic Rig Hydraulic Crawler Sonic Rock And Soil Drilling Rig
Model | YGL-S200 | |
Ability
| hole depth(m) | 100-200 |
hole diameter(mm) | 76-168 | |
Drill Angle | 0-90° | |
Drill head
| Rotary speed(rpm) | 0-52/103 |
Torque(Nm) | 9300/3900 | |
Frequency(CPM) | 6000 | |
Vibrator force(KN) | 200 | |
Weight(Kg) | 1800 | |
Winch
| Pulling force(KN) | 25 |
Diameter of wire rope(mm*m) | 7*50 | |
| Feeding System
| Pressure(KN) | 50 |
Pressure speed(m/min) | 11.3;72 | |
| Pulling force(KN) | 75 | |
| Pulling speed(m/min) | 7.8;50 | |
| Feeding Stroke(mm) | 3500 | |
Dieselpower
| Power(KW) | 160 |
Rotary speed(rpm) | 2200 | |
| Approx.weight(T) | 12 | |
| Outside dimension | L*W*H(mm)Transpoetation | 8130X2300X3270 |
L*W*H(mm)Working | 5130X2300X8200 | |
Q:Why choose us?
A:The company has used the dedicated CNC, and gotten the quality of inspection and detection means. On January 24th of 2014, Wuxi Jinfan Drilling Equipment Co., Ltd., has successfully been listed on the NEEQ.
Q:Are you are manufacturer or trading company?
A:We have both trading compang and factory.
Q:How about your customer service?
A:We have customer support team of 13 years experience.
We offers best service to all the customers over the world with tremendous technical strength and high quality of products. If you have any question,please contact us an soon as possible.
