1795 kN 27m/min Laying Technology Horizontal Directional Drilling HDD Rig Machine

1 Set
MOQ
$400,000.00(>=1 Sets)
Price
1795 kN 27m/min Laying Technology Horizontal Directional Drilling HDD Rig Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1 Year
Applicable Industries: Construction Works , Energy & Mining
Weight (KG): 25000
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Pump
UNIQUE SELLING POINT: High Digging Power
Product Name: Horizontal Directional Drilling Machine
Application: Pipe Laying Hdd Rig
Key Word: Trenchless Drilling Rig
Engine: 264/2100 KW/r/min
Maximum Pushing Force: 1795 KN
Maximum Push-pull Speed: 27 M/min
Torque: 50500 N.m
Maximum Speed: 89 R/min
Mud Pump: 800 L/min 10 MPa
Drill Pipe: 114/127*6 Mm*m
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard export packing or as you needs
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
1795 kN 27m/min Laying Technology Horizontal Directional Drilling HDD Rig Machine

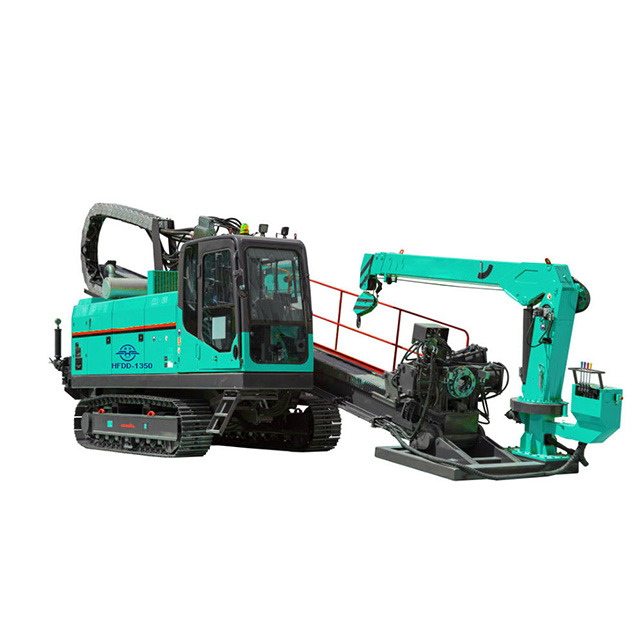

Model: HFDD-1350
Cummins QSL8.9-C360
Rated power (kW/r/min): 264/2100
Maximum push-pull force (kN):1795

Technical features
 1. Digital instrument can automatically display the actual torque, pushing and pulling force and other main construction
parameters during construction, and the operation is simple; The electronic sensing technology is sensitive and can feed back the instantaneous overload in time to reliably protect the drilling rig;
2. The elastic balance release technology of PE pipeline can effectively prevent equipment damage caused by the reaction force of back dragging pipeline and improve the construction reliability of equipment;
3. Overload protection technology, drilling rig rotation torque, pushing force and vise clamping force can be adjusted, and
digital pressure regulation technology is adopted, which is convenient and simple to adjust and can be preset accurately.

Technical Data
Engine
Model
Cummins QSC8.3-C260
Rated power
264/2100 kW/r/min
Push and pull
Maximum pushing force
1795 kN
Maximum push-pull speed
27 m/min
Rotate
torque
50500 N.m
Maximum speed
89 r/min
Mud pump
Maximum flow
800 L/min
Maximum pressure
10 MPa
Drill pipe
114/127*6 mm*m
Truck mounted crane
Lifting weight
3.2t
Lifting moment
6.4 t.m
Max. penetration angle
17°
Max. back expansion diameter
1300mm
Quality
25t
Overall Dimension
11680*2760*3540mm
Optical
Semi automatic gripper
Working Principle
Recommend Products
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Contact Us

Zhegnzhou Hanfa Imp&exp Trading Co., LTD

Attn: Vincent Guo
Position: Sales manager
Phone:0086~371~55019599
WhatsApp/WeChat: +86 15838112613 24-hour online

Kindly inform us the following information:
1. Application
2. Drilling object(rock/soil/sand, etc)
3. Drilling diameter
4. Drilling depth
Then we could recommend the suitable model with favorable price.
