Home /Products/HDD Drilling Rig/energy & Trechless Technology Mining Crawler HDD Horizontal Directional Drilling Rig For Various Construction Situations

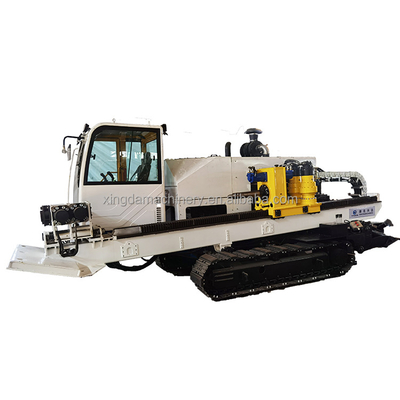

energy & Trechless Technology Mining Crawler HDD Horizontal Directional Drilling Rig For Various Construction Situations

1 Set
MOQ
$65,600.00(>=1 Sets)
Price
energy & Trechless Technology Mining Crawler HDD Horizontal Directional Drilling Rig For Various Construction Situations
Features Gallery Product Description Request A Quote
Features
Specifications
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Model Number: XDP-25
Warranty: 1 Year
Condition: 100% New
Applicable Industries: Energy & Mining, Construction Works
Weight: 6500
Suitable Excavator(ton): 10
Core Components: Engine, Gearbox, Pump
Product Name: Horizontal Directional Drilling Rig
Usage: Trenchless Laying Drilling
Advantages: Trenchless Technology
Way Of Walking: Wire Remote Control
Engine Power: 133KW(1200r/min)
Feed/Pull Capacity: 275KN
Penetration Angle: 8~21°
Guide Hole Diameter: 130mm
Price: Negotation
MOQ: 1set
Basic Infomation
Model Number: XDP-25
Payment & Shipping Terms
Packaging Details: carton packing
Supply Ability: 10 Set/Sets per Month
Product Description
Product Description
Hydraulic Engineering Crawler Horizontal Directional Drilling Rig Price
Main Structure Features A. Adopting advanced control technology for the hydraulic and electric systems, the rig is comfortable in operation; adopting wired remote control method; main components are adopted well-known brands home and abroad. B. The rotation of drill head is driven with dual low speed hydraulic motors, in large torque, set with 2 gear stepless speed adjustment. C. Drill head feeding/pull adopted dual motors driving and adopting rack and pinion transmission structure, the rig is in high stability and efficiency. D. Mud pump is driven hydraulically and in mechanical transmission, the pump can be adjusted flexibly for its pressure and displacement. E. Adopting steel crawlers with rubber track boots, the rig can not only sustain heavy loading, but travel on all kinds of roads. F. Provided with completed set drilling tools, including Φ73×3000mm drill rod, and the tools can be provided basing on special customization. G. Equipped with wireless guiding device, the rig is in easy operation. H. With robotic hand in option, it is easy for rod loading and unloading and in higher efficiency; thus the operators’ physical strength are largely decreased.
Engine Power
Cummins QSB5.9-C180 133 Kw/2200rpm
Feed/Pull Capacity
275 KN
Rotation Torque
8000N·m
Spindle Rotation Speed
0～68,0～135r/min
Feed Stroke
3500mm
Guide Hole Diameter
φ130mm
Penetration Angle
8-21°
Pressure of Hydraulic System
20MPa
Traveling Speed
1.5～3km/h
Dimensions (L×W×H)
6000×2060×2330mm
Weight
10t
Mud Pump Max. Flow Rate
250L/min
Mud Pump Max Pressure
8MPa
Rod Size
φ60, φ73
