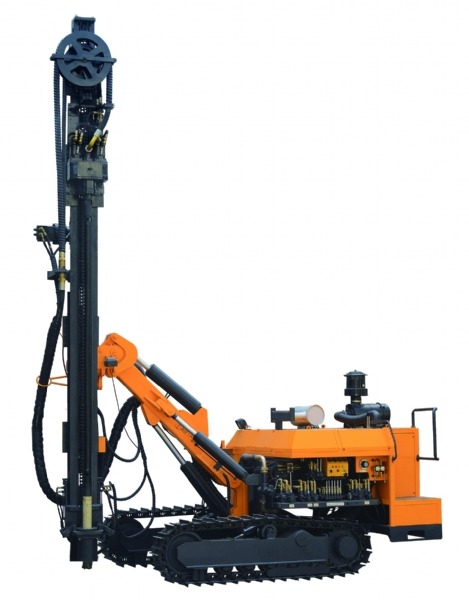

Hydraulic&Pneumatic Crawler Drilling Rig 976D
| Item No. | JSYX976 |
| Drilling hardness | 6~20 |
| Borehole diameter | 90~203mm |
| drilling depth | 45~120m |
| rotary speed | 0~185r/min |
| rotary torque | 4500~6800N.m |
| Lifting force | 6600kg |
| Feed stroke/one proplusion length | 3000mm |
| drilling rod length | 3000mm |
| drilling rod diameter | 76mm,102mm |
| compensation length of beam | 1220mm |
| Gradeability | 35° |
| Power | 4 cylinder diesel engine YC41125Z-T21 92kw electric engine Y55KW-4P 55kw |
| pitch angle of carriage | down 90° |
| pitch angle of boom | vertical outward 90°,upward 158° |
| swing angle of boom | left 30°,right 50° |
| working air pressure | 0.7~2.5Mpa |
| air consumption | 10~28m³/min |
| N.W | 7400kg |
| out dimesion | 6900*2100*2150mm |
| horizontal hole hight | forward 180° (whole drill rig length 8100mm),rightward 90° height 600mm |
| Q1: Are you factory or trade company? |
| A1: We are factory. And we have ourselves trading company. |
| Q2: Which trade term can you accept? |
| A2: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc. |
| Q3: Warranty terms of your machine? |
| A3: One year warranty for the machine and technical support according to your needs. |
| Q4: Will you provide some spare parts of the machines? |
| A4: Yes, of course. |
| Q5: What about the voltage of products? Can they be customized? |
| A5: Yes. The voltage can be customized according to your equirement. |
| Q6: Which payment term can you accept? |
| A6: 30% T/T in advanced, 70% T/T against the B/L copy. |
| Q7: How long will you take to arrange production? |
| A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days. |
| Q8: Can you accept OEM orders? |
| A8: Yes, with professional design team, OEM orders are highly welcome. |
