Home /Products/Pneumatic Drilling Rig/energy & Small Size Mining Borehole Water Well Drilling Rig Drill Equipment Auger

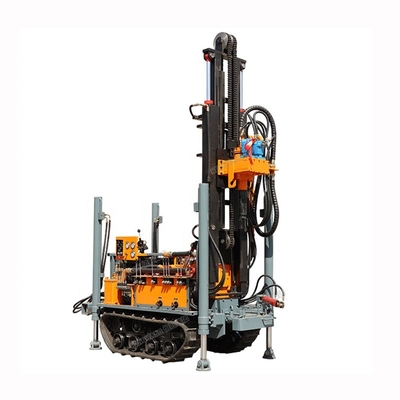

energy & Small Size Mining Borehole Water Well Drilling Rig Drill Equipment Auger

1 Set
MOQ
$11,500.00(1 - 4 Sets) $11,000.00(>=5 Sets)
Price
energy & Small Size Mining Borehole Water Well Drilling Rig Drill Equipment Auger
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Energy & Mining
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 110v 220v
Dimension(L*W*H): 2000*1200*1750mm
Weight: 2600 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine
Key Selling Points: Flexible Manufacturing
Drilling Diameter: 300mm, 50mm, 75mm, 100mm, 200mm
Drilling Depth: Max.100m
Mobility: Crawler
Product Name: Well Drilling Water Drilling Machine
Model: HWY160
Drilling Dia.: 130-203mm
Drilling Depth: 160m
Drilling Direction: To The Ground 90°
Diesel Engine Power: 63kw
Rotary Speed: 65-100rpm
Air Pressure: 1.2-3.0Mpa
Air Consumption: 10-25m3/min
Feed Stroke: 2000mm
Basic Infomation
Model Number: HWY160
Payment & Shipping Terms
Packaging Details: Borehole small size Water Well Drilling Rig Drill Equipment driller
Supply Ability: 300 Set/Sets per Month
Product Description
Product Overview

HW series PNEUMATIC AIR COMPRESSOR DRILL RIG
HWY160 (CRAWLER TYPE)With 1800mm length hydraulic landing leg,easy to move
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour

HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in
drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The pneumatic drill machine can work on different formations, drilling diameter up to 245mm. The well drill equipment adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion,branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. The down the hole hammer drill rig with unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
PRODUCT SPECIFICATIONS
HWY160 family application small size compact rotary water well drilling rig
Model
HWY160
Overall weight (kg)
2600kg
Dimension (mm )
2000*1200*1750
Drilling diameter(mm )
130-203
Drilling depth(m)
160
Feed stroke
2000
Traveling speed(km/h )
2.5
Climbing ability(max )
25
Minimum Ground Clearance(mm)
300
Working Air Pressure(mpa )
1.2-3.0
Air consumption(m3/min)
10-25
Main machine power(kw)
63
compact size small water well drilling and rig machine HWY160
Details analysis of the water well drilling rig
Detailed Images
rocky geology borehole water well drill rig pictures as follows:
compact size small water well drilling and rig machine HWY160
Features of double hydraulic motor hammer air compressor water drilling machine for rocky
1.Drill rig with hydraulic system
2. The air drill machine with large rotary torque
3.Drilling rig integrated automation equipment,All terrain moves by itself
4.The drill equipment with 2 speed reversal, easy and fast to handle accidents.
5.The drilling rig adopts self loading and unloading,Easy to operating
The water well drill rig work with air compressor
Application of water well drilling equipment as follows:
Working case
Hengwang water well drilling rig has been exported many times to lots of countries which get a very good feedback. And the following is the pictures from our customer:
Hengwang drill machine Engineer in Ukraine for training
Hengwang water well rotary drill rig in Malaysia
Drill machine with air compressor work site in Russia
Pneumatic water well drill Machine working case in Uzbekistan
water well drill rig rock geology working in Philippines
Air powered drilling machine working site in Italy mountain
Packing & Delivery
Generally, we use standard exported wooden case for LCL drill machine spare part, and load crawler type water well drilling rig by FCL in 20feet container. If well drilling rig with air compressor we choose 40feet container for loading.
compact size small water well drilling and rig machine HWY160
Company Profile
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
