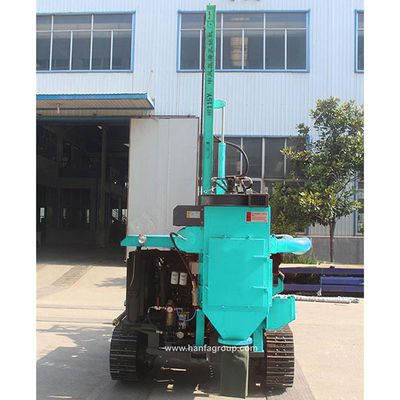

HF115Y crawler hydraulic down the hole drill adopts new hydraulic technology, with low air consumption, large rotary torque and convenient hole moving and displacement. The drilling rig has compact structure, and the propulsion carriage has expansion compensation function. When drilling, the carriage is supported on the ground. The drilling rig has good stability and can effectively ensure the verticality of drilling. The drilling rig has reliable performance and high drilling efficiency. The drilling speed of the drilling rig on medium hard rock is twice that of the low wind pressure drilling rig, which is a powerful guarantee for the construction unit to reduce costs and improve efficiency.
Application
The drill is mainly suitable for blasting hole drilling in open-pit mining, water conservancy, power station, road construction and other stonework projects.
Technical parameter
|
Bore diameter |
90-150(mm) |
|
Bore depth |
42(m) |
|
For rock |
6-20(F) |
|
Air pressure |
0.7-1.6(Mpa) |
|
Air consumption |
7-15(m³/min) |
|
Once promotion |
3000(mm) |
|
Skid pitch |
100(°) |
|
Swinging angle of skid |
55(°) |
|
Boom swing angle |
70(°) |
|
Boom pitch |
40(°) |
|
Rotation Speed |
0-120(r/min) |
|
Host Power |
56 (Kw) |
|
Walk speed |
0-2.5(km/h) |
|
Climb ability |
30(°) |
|
Dimension |
5480*1950*3150(L*W*H)(mm) |
|
Weight |
5160(Kg) |
Structural features:
|
1. Safe and stable traveling mechanism: Steel crawler chassis, with low center of gravity, large ground clearance, firm and stable structure, can easily cross rough roads. 2.Traveling speed reduction mechanism: the application of traveling speed reduction mechanism with strong power and reliable performance can greatly improve the traveling output torque and effectively ensure the service life of traveling motor. Strong climbing ability and great traction. 3.New drilling arm: the optimized luffing mechanism has novel structure and convenient adjustment, which greatly improves the coverage of the drilling rig during drilling construction, and can drill lower horizontal holes. 4.Deceleration slewing mechanism: the high torque hydraulic motor drives the slewing mechanism with deceleration, which provides strong slewing torque for the drilling rig and reduces the probability of sticking in construction. |
5. Strong propulsion mechanism: the propulsion mechanism driven by oil cylinder can produce stable and strong propulsion force. Adjusting the pressure regulating valve on the propulsion operation valve can obtain the best propulsion force required by the actual working conditions. 6. Operating mechanism: the centralized console strengthens the practicability of operation and the observation of the construction process during construction. 7.Select different rotation speeds according to different geological conditions to improve production efficiency and reduce use cost. 8. The drilling rig is equipped with a diesel engine start-up preheating system to avoid the difficulty of starting the diesel engine in cold weather. 9. The hydraulic floating oil cylinder can adapt to hole displacement in different terrain and complex terrain
|
1.How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
2.How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
3.How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
4.How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
