Home /Products/Pneumatic Drilling Rig/KT-368B Modern Pneumatic Multi Head Drilling Rig Aluminum Curtain Wall Machinery

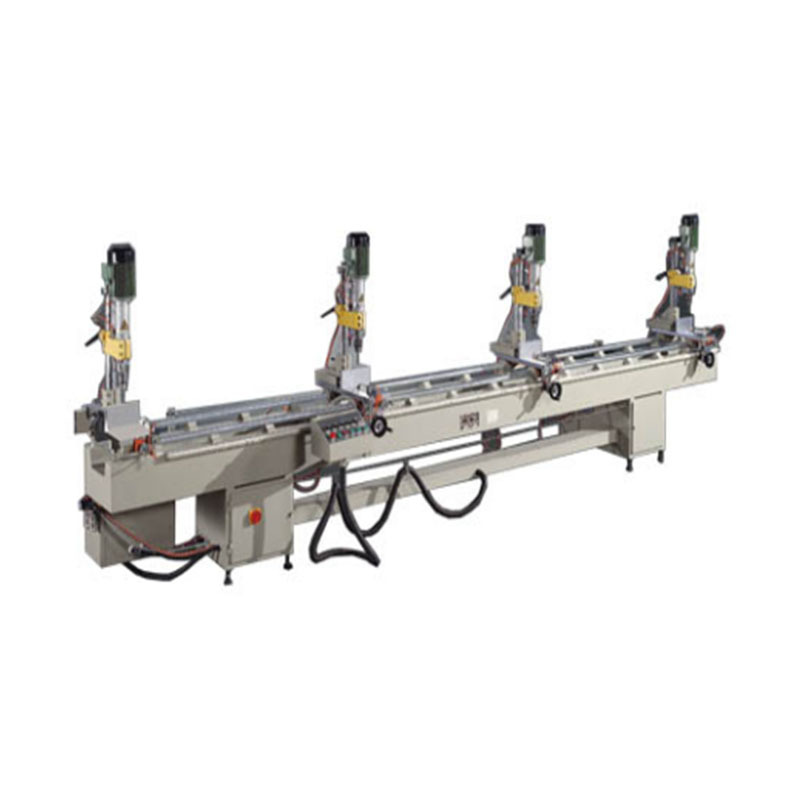

KT-368B Modern Pneumatic Multi Head Drilling Rig Aluminum Curtain Wall Machinery

1 Piece
MOQ
$13,500.00(>=1 Pieces)
Price
KT-368B Modern Pneumatic Multi Head Drilling Rig Aluminum Curtain Wall Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Curtain Walls
Warranty: 1 Year
After-sale Service: Online Technical Support, Onsite Installation, Free Spare Parts
Project Solution Capability: Others
Application: Hotel
Design Style: Modern
Model Number: KT-318B
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Package: By Wood Box
Packing Size: 6.3m*1.25m*2m
Weight: 1500kg
Certification: Iso
Brand: Kingtool
Condition: New
Weight: 1500Kg
Color: White
Motor Power: 0.75Kw *4
Basic Infomation
Certification: iso
Model Number: KT-318B
Payment & Shipping Terms
Packaging Details: in wooden case
Product Description
Specification
The quantity of power drill
4~6 pieces
Max. drill and cut hole diameter
Φ15mm(single hole)
Min. drill and cut hole diameter
Φ3mm
Max. processing aluminum profile end size
200x260mm
Main motor power
0.75Kw × 4
Worktable dimension
240x220mm
Max. distance of drilling head moves from front to rear
60mm
Max. distance of power drill moves from up to down
150mm
Drilling head feeding speed
0.1~0.2mm/r
Min. distance between each hole
245mm
Main motor rotation speed
2800rpm
Overall dimension (L×W×H)
4000×860×9500mm
Weight
1500Kg
Product Description

This drilling machine is used for processing the through-hole or
non-through-hole on the profiles of curtain wall and aluminum alloy. It may
also used for the processing of industrial profiles and window profiles.
Because of adopting the motor and the direct-ally style outputs of cylinder, as
a result, drilling a hole more steady and the accuracy is high. This machine can
pack to the head of clip-drill and the multi-head drills station, making drill a hole
more convenient.
Company Profile
We are the leading aluminum fabricating machine manufacturer in China since 1994. We offer a wide variety of Aluminum fabricating machinery that includes Structural Glazing, Curtain Walls, Sky Lights, Hinged and Sliding Doors and Windows, as as well aluminum cladding. Every precedure link is strictly controlled, and strive to achieve “KINGTOOL machine, do best for you”!
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
After-sales service: 1.KINGTOOL can arrange engineers to go to the customer's factory for machine installation and operation training. Online technical support is also provided.
2. Shipping Documents We will assist in providing most documents, including packing list, commercial invoice, CO, FORM E, COC certificate and other required export documents. 3. Delivery time Usually it cost about 7-40 working days after receiving deposit. 4. Payment terms. Usually we accept 30% deposit by T/T in adavance, balance by T/T before loading. 5. Warranty We offer one year warranty for the whole machine. 6. Shipment and Packing. The machines are packed in wooden cases, and are available for LCL or FCL shipment.
