Pneumatic Water Wells Rig Hot Sale 160m Rock Drill Rig Rock Drilling Rig Tractor Machine China HZ-160L

1.0 Sets
MOQ
$13,500.00(1 - 4 Sets) $12,500.00(>=5 Sets)
Price
Pneumatic Water Wells Rig Hot Sale 160m Rock Drill Rig Rock Drilling Rig Tractor Machine China HZ-160L
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Machinery Repair Shops, Home Use, Retail, Construction Works , Energy & Mining
Showroom Location: Viet Nam, Philippines, Indonesia, Pakistan, Thailand
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 380V
Dimension(L*W*H): 2100*1200*1900mm
Weight: 2600 KG
Warranty: 1 Year
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, Gear, Bearing, Gearbox
Key Selling Points: Competitive Price
Drilling Diameter: 130-192mm, 130-192mm
Drilling Depth: Max.160m, 160m
Mobility: Move By Track
Model: HZ-160L
Engine Power: 63kw
Engine Brand: YUCHAI
Application: Water Wells Rock Drill Rig
Drill Rod Diameter: 76mm 89mm
Hydraulic Motor Torque: 7800N.m
Overall Weight: 2600kg
Dimension: 2100*1200*1900mm
Basic Infomation
Model Number: HZ-160L
Payment & Shipping Terms
Packaging Details: nude package in container.
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

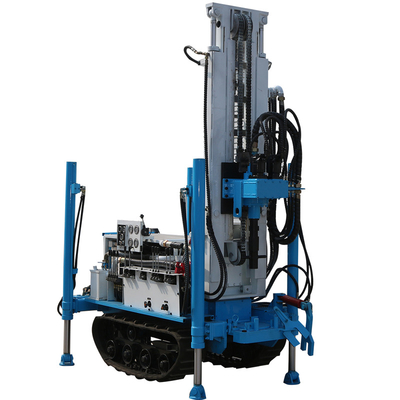

HUAYAO HY-160L Water Well Drilling Rig 160m Diesel Crawler Drilling Rig For Sale
HUAYAO Water well drilling rig is a kind of light, efficient, and multifunctional drilling equipment, which is mainly suitable for industrial, civil, and geothermal drilling. The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area. It is especially suitable for taking water from mountain areas and rock stratum.
HZ-160L can drill in different strata, and the diameter of the drilling can reach 130-192mm. HZ-160L adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion. The famous brand Yuchai 63KW four-cylinder engine provides power for the hydraulic system. The unique design of the hydraulic pump set is convenient for maintenance and reduces maintenance costs. HZ-160L adopts engineering special rubber track, which will not damage the road surface during driving. The hydraulic operating lever and instrument panel are centrally arranged on the right side of the machine, which is convenient for operation and improves the operating efficiency of the machine. The hoist with 8-12T lifting force can easily lift the drill pipe and impactor. The transportation size is 2.1*1.2*1.9 meter, and the small size is convenient for the transportation of the drilling rig.
Product Name
Water Well Drilling Rig
Model
HZ-160L
Overall Weight
2600kg
Dimension
2100*1200*1900mm
Drilling Diameter
Ф130-Ф192mm
Drilling Depth
160m
Diameter of Drill Rod
Ф76mmФ 89mm
Maximum Drilling Length Per Time
2m
Traveling Speed
2.5km/h
Climbing Ability
25°
Minimum Ground Clearance
250mm
Working Air Pressure
1.45 - 2.5Mpa
Air Consumption
15 - 27m³
Engine Power
YUCHAI 63KW Engine
Lift Force
8-12T
Rotary Speed
38 - 80rpm/min
Rotary Torque
7800N.m
The applicable geology is a hard rock layer.
If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse.
Drilling Mode
Double Hydraulic Motor Rotor Propulsion Impactor
Down The Hole Hammer or Mud Drilling
Impactor
China Famous Brand New Diamond
Middle and High Pressure Series Impactor
Optional Accessories
1.1000 hours Spare Parts
2.Mud Pumps
3.Electric welding machine
4.Foam Pump
