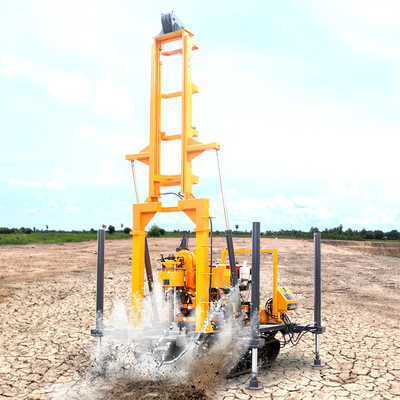

(Machine parameter) | (Model) | HW-160L | ||
Drilling depth(m) | 160 | |||
Open hole dia. (mm) | 500, 220 | |||
End hole dia. (mm) | 75 | |||
Drill rod dia. (mm) | 42、50 | |||
drill angle (° ) | 90-75 | |||
Matching engine power (kW) | 13.2 | |||
Weight without power (kg) | 3350 | |||
Dimension L*W*H(m) | 3.8*1.95*2. 7 | |||
Spindle) | Speed (r/min) | 142/285/570 | ||
Stroke (mm) | 450 | |||
(Crawler chassis) | Crawler size (mm) | 350*90*48 | ||
Climbing angle (° ) | 20° | |||
Moving speed (km/h) | 10 | |||
Hydraulic leg valid height (mm) | 1300 | |||
(Drill tower) | Rated load (ton) | 18 | ||
Height (m) | 6.5 | |||
(Mud pump) | Flow (L/min) | 160 | ||
Max. pressure (MPa) | 1.3 | |||
Reciprocating times/min | 165 | |||
Inlet hose dia. (mm) | 51 | |||
Outlet hose dia. (mm) | 32 | |||
Model | HW230 |
Drilling depth | 230m |
Drilling diameter | 75-300mm |
Rated Power | 15Kw |
Machine Dimension | 2. 7*0. 9*1. 5m |
drill angle (°) | 90-75 |
Model | HW-190S |
Drilling depth(m) | 190 |
Drilling diameter | 75-300mm |
Matching power (kW) | 13.2 |
Weight (kg) | 2800 |
Dimension（L*W*H） (m) | 4*1. 7*2. 3 |
Model | XY-3T |
Drilling depth(m) | 600 |
Drilling diameter | 75-325mm |
Matching power (kW) | YUNNEI YN27/ 39 |
Weight (kg) | 3600 |
Dimension（L*W*H） (m) | 2. 9*2. 56^3. 3 |
