Product Description
Type characteristics
High configuration:
Fuel electronic fuel system with standard distribution of electronic oil pump, transparent cup, water level sensor and discharge valve
High reliability:
High Strength Body + Full Flow Oil Cooler, Heat Dissipation Efficiency Increased by More than 30%
PTO ability:
Strengthened crankshaft with 50% power output capability
Good adaptability:
The intake and exhaust pipes are designed close to each other. The fuel distributor has good proximity and compact structure.
Good starting performance:
Yuchai patented worry-free self-emptying technology, automatic exhaust during operation, standard distribution of electronic oil pump, better start-up performance
Technical parameters
Model | KW600 |
| Drilling diameter | 168-350mm |
Drilling Depth | 450m |
Working pressure | 10.5-24.6bar |
Air consumption | 16-73m³/min |
Drilling hardness | f=8-12 |
Feed stroke | 3000mm |
Climbing capability | 15° |
| Pushing speed of sliding plate | 6.7-49m/min |
Lifting speed of sliding plate | 3.3-24m/min |
Fast Pushing Speed | 2km/h |
Rotation torque | 8500N·M |
Rotation Speed | 76-123rpm |
Rated lifting force | 150N·M |
Diesel Engine | Yuchai YC4A150-T300 |
Engine Power | 113kw |
Travelling speed | 0-2 km/h |
Groud clearance | 280mm |
Weight | 9500kg |
Dimension | 7300*2250*2750mm |
Volume of hydraulic oil tank | 400L |
| Volume of diesel oil tank | 150L |
components |
|
DTH Hammer | 5inches, 6inches,8inches |
Drill Rod | Φ89*3m or Φ102*3m |

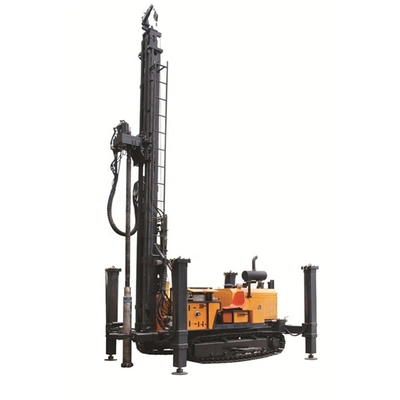

Product Display
