Features

Specifications

Applicable Industries: Construction WorksÂ , Energy & Mining

Showroom Location: Pakistan

Condition: New

Type: Rotary Drilling Rig

Power Type: Diesel

Usage: Water Well

Dimension(L*W*H): 3800*1950*2700mm

Weight: 3000 KG

Warranty: 6 Months

Marketing Type: Hot Product 2019

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: Motor

Key Selling Points: Flexible Manufacturing

Drilling Diameter: 300mm, 50mm, 75mm, 60mm, 100mm, 200mm

Drilling Depth: Max.200m

Product Name: XYD-200 Crawler Hydraulic Water Well Drilling Rig

Drilling Depth: 30-200m

Drilling Diameter: 300-75mm

Drilling Angel: 90-75

Spindle Rotating Speed: 64/128/287/557

Spindle Stroke: 450mm

Basic Infomation

Payment & Shipping Terms

Packaging Details: Woven bag packing

Supply Ability: 30 Set/Sets per Month

Product Description

Characteristicsof XYD-200 crawler hydraulicwater well drilling rig

crawler hydraulicwater well drilling rig uses automatic Telescopic drilling rig ,it uses two high-strength cylinders to support.There is a group of hydraulic valves to control super nation of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.
the chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body's shake,reduce the oil consumption.It can walk on the pavement of city and don't hurt the pavement.
the chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs install rate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.
using 48V electric starting diesel engine is reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.
the drilling rigis equipped with BW-160 independent mud pump,the pump flow and pressure are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.

Parameters of XYD-200 crawler hydraulicwater well drilling rig

XYD-200 crawler hydraulic water well drilling rig
Drilling depth	200m
Maximum opening diameter	75-300mm
Final hole diameter	75mm
Kelly	53/59*4200mm
Drill pipe diameter	50/60mm
Drilling angle	90°-75°
Auxiliary power diesel engine	16.2kw 2200r/min
Structural weight/Size	3000kg /380019502700
Spindle
Spindle speed	64/128/287/557r/min
Spindle stroke	450mm
Windlass
Single rope lifting force	24kn
Single rope lifting speed	0.12/0.22/0.49/0.95m/s
Drum diameter	140mm
Wire rope diameter	13mm
Wire rope capacity	35m
Derrick
Rated load	5t
Effective height	6m
Tower leg specification	89mm

Detailed Images

Drilling depth	200m	Drill pipe diameter	50/60mm
Maximum opening diameter	75-300mm	Drilling angle	90°-75°
Final hole diameter	75mm	Auxiliary power diesel engine	16.2kw 2200r/min
Kelly	53/59*4200mm	Structural weight/Size	3000kg /380019502700

Packing & Delivery

Packing Details : Full Cotainer Load or Export Wooden Box

Delivery Details : 3-15 days after order

As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.

Certifications

Our Company

Shandong Master Machinery Group ("Master Group" for short) is headquartered in Jining, Shandong, China, which is known as the "Hometown of Confucius and Mencius, and the State of Ceremony".

Master Group is dedicated to providing the machinery equipment for engineering and mining construction. We focus on providing innovative products and services that meet or exceed the expectations of our global customers while complying with safety and regulatory requirements. We are a leading company in the machinery industry in China. We have established solid relationship with several universities, research laboratories, designing institutes and prospecting institutes. And we have participated in a number of national key projects and earned our reputation. As a active response to the Belt and Road Initiative, we have took numerous efforts to go abroad. Our products have been sold to Europe, Central Asia, Southeast Asia, Africa and dozens of countries and regions. Master Group's independent trademark "huaxiamaster" has become a well-known brand for customers.

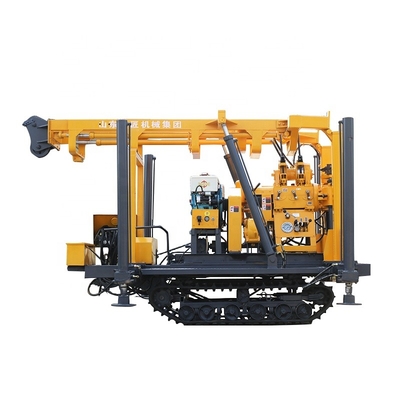

Construction worksÂ Crawler Water Well Drilling Rig With High Efficiency Crawler Drilling Rig Rotary Drill Rig
