Home /Products/Water Well Drilling Rig Equipment/500m diesel hydraulic portable water well drilling rig / water well drilling machine / gold core drilling machine

500m diesel hydraulic portable water well drilling rig / water well drilling machine / gold core drilling machine

1 Piece
MOQ
500m diesel hydraulic portable water well drilling rig / water well drilling machine / gold core drilling machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Energy & Mining
Showroom Location: Viet Nam, Pakistan, India, Morocco, Chile
Condition: New
Type: Rotary Drilling Rig
Power Type: Other
Usage: Water Well
Weight: 11500 KG
Warranty: 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, Engine, Gearbox
Key Selling Points: Competitive Price
Drilling Diameter: 140-350mm
Drilling Depth: Max.500m
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 120 Piece/Pieces per Month
Product Description
Product Description

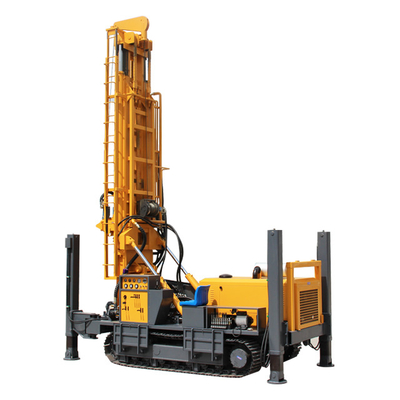

FY500 water well drilling rig

φ 140-350mm

Depth 500m

118KW Commins Engine

High Leg Stroke 1.7M

Once-time advance length 6.6M

 Portable 500m Crawler Type Borehole Water Well Drilling Rig
The Weight(T)
11.5
Equipped capacitor(Kw)
118KW
Dimensions(mm)
6200*2200*2550
Swing speed(rpm)
40-130
The hole diameter(mm)
140-350mm
Swing torque(N.m)
7500-10000
Drilling Depth(m)
500m
Drill pipe diameter(mm)
φ102 φ108 φ114
Once-time advance length(m)
6.6m
Drill pipe length(m)
1.5m 2.0m 3.0m 6.0m
Walking speed(Km/h)
2.5
Rig lifting force(T)
26
Climbing angles(Max.)
30
sopporting Power
31m3/min 25BAR AIR COMPRESSOR
Using air pressure(Mpa)
1.7-3.5
SHOW DETAILS
Engine
Engine: Well-known brand Guangxi Yuchai turbocharged engine or American Cummins brand
turbocharged engine

Power head device
Power head device; the box body is integrally formed, and the dual motors provide greater power, greater torque, more
durability, and lower maintenance costs.



Hydraulic oil pump
Hydraulic oil pump: imported from Italy, parallel gearbox design, oil pump separation, provide
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application
Exhibition＆customer
Company Profile
Mengyin Feida Mine Engineering Machinery Co., Ltd.. is located in Linyi City, Shandong Province. Mengyin Feida Mining Engineering Machinery Co., Ltd. is the largest manufacturer of water well drilling rig and DTH drilling rig in Shandong Province. Founded for more than 20 years, the company is committed to developing the professional production of DTH drilling rig, water well drilling rig, drilling tool and air compressor. The main business of the company is the import and export of mining engineering machinery and equipment, water well drilling rig, rope drilling rig, blasting rig, core drilling rig and air compressor and other supporting equipment.

Feida company has independently developed a new generation of kqz-100, kqz-200 and FY series water well drilling rigs, and the company has won a number of national intellectual property rights patents.

Feida drilling rig has passed ISO9001 international quality management system certification, and has established "Feida drilling rig equipment research center" with Shandong University of Technology to provide better guarantee for product R & D and product quality.

Contact us

We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
FAQ
1. why should you buy from us not from other suppliers? Feida Mining Machinery Co., Ltd. has been researching and producing water well drilling rig, DTH drilling rig and supporting equipment for 20 years.FY series products have the characteristics of high drilling speed, economy and low failure rate 2.what can you buy from us? Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor 3. How can we guarantee quality? Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos. 4.Can you do OEM for me? We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP. 5.Are you a manufacturer or trading company? We are professional manufacturer with big modern factory in ShanDong,China. 6.Do you have any certificates for your machine? All of our products coming with the certificates of CE,ISO9001. 7. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cash; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
