New small portable shallow well drilling used cheap water well drilling rig price for sale
Our drilling rigs are widely used in water well drilling,geological exploration,construction building exploration,drilling inspection of concrete structure holes,river dam construction,subgrade grouting hole drilling abd direct grouting,ground temprerature central conditioning construction,etc..
Drilling rig and accessaries technical parameters and specification is as the following:
1.Drilling Rig Technical Parameters | |
Drilling Depth(m) | 50~100m |
Max. Open Hole Diameter(mm) | 260 |
End Hole Diameter(mm) | 75 |
Drill Rod Diameter | 50mm |
Drilling Angle | 90~75 |
Drill Weight (No include power) | 810kg |
Overall Dimension | 2500*900*1300mm |
2.Spindle | |
Spindle Speed | 142,285,570r/min |
Spindle Stroke | 450mm |
3.Hoist | |
Max. Single Line Hoisting Capacity | 960kg |
Reel Lifting Speed | 0.41,0.82,1.64m/s |
Tightrope Diameter | 10mm |
Tightrope Cubic Measure | 27mm |
Hug Follgate Belt Width | 70mm |
4.Mud Pump | |
Type | Horizontal Single Urn Twin-action |
Discharge/Displacement | 95/77L/Min. |
Diesel | S1105 18HP |
Electric Motor | 11KW,1440r/min |
Max. Pressure | 1.2Mpa |
Work Pressure | 0.7Mpa |
Water Inlet Diameter | 30mm |
Water Outlet Diameter | 25mm |
Triangle Conveyre Belt | B1575mm |

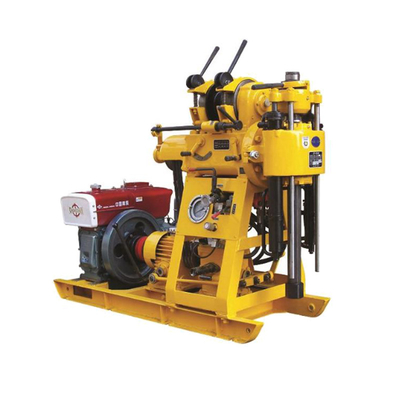

HL-130Y water well drilling rig,control panel and diesel engine picture
Water well drilling rig and accessories is packed with wooden box or according to customer requirement.Packinging & shipping picture as reference:
(1)Produce water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)All model drilling rigs are available,MOQ is only 1 set.Many sizes in stock.OEM,ODM. Export to USA,Europe,Asia,Africa,America and Australia.
(3)Fast production for big orders,delivery by sea,truck,air,express.Works on FOB,CIF.
Shandong Yikuang Drilling Technology Co.,Ltd. (hereinafter referred as YK drill) is a professional manufacturer of mining equipment and rock drilling tools. As a young and developing enterprise, YK drill is located in Linqing City of Shandong Porvince. Main distribution scope of YK drill includes full range of rock drilling tools for top-hammer open mine drilling, under-ground long-hole drilling, top-hammer tunnel drilling and rock bolt anchoring. The full range rock drilling tools include hydraulic drilling tools, DTH drilling tools, tapered equipment and drilling tools for under-ground long-hole drill rigs; the hydraulic drilling tools include drill rods, drill bits, couplings, shank adapters, hydraulic drifters and thereof spare parts. DTH drilling tools include DTH hammers, DTH bits and DTH drill pipes of high pressure, middle pressure and low pressure. The tapered equipment include high-quality tapered button bits, tapered chisel bits, tapered cross bits, tapered rods and integral rods. The distribution network of YK drill includes more than 20 Provinces, autonomous regions and municipalities in domestic marker, and more than 20 countries like Australia, America, Canada, Finland, Germany, Japan, South Africa, Chile and so on around the world. YK drill looks forward to cooperating sincerely with clients all over the world.
(1)What type drilling rig do you produce?
Answer: Water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)What specification is your drilling rig?
Answer: We have different types and models drilling rig for different drilling purpose.
(3)We are interested in your drilling rig,we have some questions.How can I get your offer?
Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
