Construction works   Hole Diameter 2000mm Drill Depth 220m Reverse Circulation Truck Mounted Water Well Drilling Rig

1 Set
MOQ
$13,000.00(1 - 2 Sets) $12,000.00(>=3 Sets)
Price
Construction works   Hole Diameter 2000mm Drill Depth 220m Reverse Circulation Truck Mounted Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Egypt, Viet Nam, Philippines, Brazil, Peru, Indonesia, Thailand, Chile, Romania
Condition: New
Type: Core Drilling Rig
Power Type: Diesel
Usage: Ore
Voltage: 220V/380V
Dimension(L*W*H): 9200*2500*3500 Mm
Weight: 12500 Kg
Warranty: 1 Year
Name: Truck Mounted Water Well Drilling Rig
Drill Depth: 220m
Drill Hole Diameter: 450-2000
Drill Rig Dimensions: 9200*2500*3500mm
Drill Rig Weight: 12500kg
Spindle Torque: 12000N.m
Hoist Lift Force: 3000x6kg
Mud Pump Power: 22kw
Mud Pump Flow: 300m3/hr
Local Service Location: Egypt, Canada, Philippines
After-sales Service Provided: Video Technical Support, Online Support
Certification: ISO9001,CE
Basic Infomation
Certification: ISO9001,CE
Payment & Shipping Terms
Packaging Details: wooden case for model HF200 hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig
Product Description
Product Description

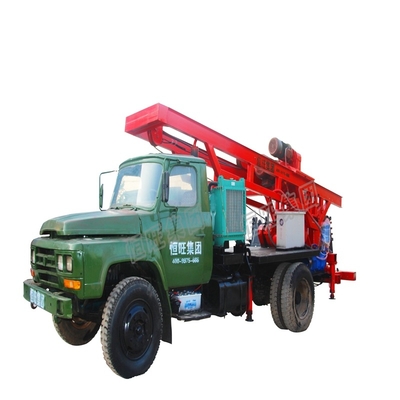

Model HF200 hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig

The impact frequency of reverse circulation rig is 40times/min,and the the weight of the shot bit is 4ton , dirlling hole diameter from 800-1500mm. The impact of the high frequency of rock, the rock broken, then using reverse circulation way of sludge discharge in a timely manner will break cuttings discharge hole outside the first time.Drill bit balance by two steel rope connection, is very convenient, drill, greatly shorten the auxiliary time.
Main parameter
Hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig Parameter
Model
HF200
Drilling depth（m）
≤220
Drilling diameter (mm)
450-2000
Speed (r/min)
9
Power(kw)
11
Torque(n.m)
12000
Winch lift force （kg）
3000*6
Diesel model
4105
Size(mm)
9200*2500*3500
Weight（kg）
12500kg
Main features:
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
Detailed Images
detail information of model HF200 hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig
Working case
Packing&Shipping
model HF200 hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig
Company Introduction
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of well drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
FAQ

model HF200 hole diameter 2000mm drill depth 220m reverse circulation truck mounted water well drilling rig

Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc

Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
