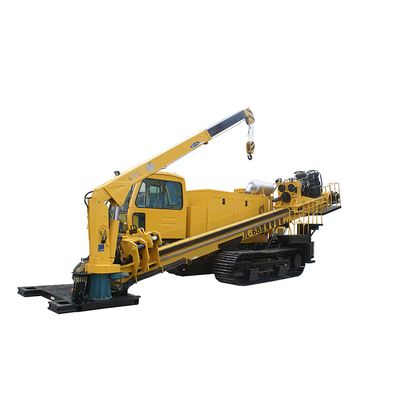

JL-68 HORIZONTAL DIRECTIONAL DRILLING RIG
The JL- 68 is a full hydraulic Horizontal Directional Drilling Rig with rubber crawler belts. It has simple design and advanced structure and is integrated with power station and main power which lead to the liable and table movement.Double-holder makes the rod loading and unloading efficient. The mast can be adjusted within the range of 8 ° -16 ° opening angle.The whole machine is very stable with low center of gravity; It is Equipped with an auxiliary crane and its controlling cab provides a comfortable environment for the operator. Attractive appearance reflects the human-oriented design conception.
1. Features & Benefits
1) Lowest diesel fuel consumption.
2) Main components all adopt famous products from home and abroad.
3) Powerful diesel engine, low noise, suitable for construction in downtown.
4) The power head is equipped with two engine;stable torque.
5) Push/pull system is driven by double engine;fast and snow level,can move fast.
6) Easy to control;Ball Valve can lead to fast/snow level;more safe to tow and can walk at a high speed.
7) Hydraulic pressure leg can adjust machine more stable and convenient.
2. Parameter
Main Machine | |
Power of Engine | 110kw(2300r/min) |
Max. Push /Pull capacity | 200/200KN |
Rated Torque | 6000N.m |
Hollow Spindle RPM | 0-70,0-140r/min |
Feeding Stroke | 3300mm |
Diameter of Guide Hole | φ80mm |
Drilling Angle | 0-21° |
Pressure of hydraulic system | 20Mpa |
Walking speed | 1.6/3.2 km/h |
Structural Style | integrated with rubber crawler and mud pump |
Dimension (L×W×H) | 5.9×2.1×2.4m |
Weight | 6500Kg |
Mud Pump | |
Type | BW160/10 |
Max. Discharge | 160L/min |
Peak Pressure | 8Mpa |
Mud Tank | 15 m³ |
Drilling tools and auxiliary system | |
Specification of Rod | φ60×3000mm |
Guide Bit | φ80mm |
Reamer | φ100 φ200 φ300 φ400 φ500 |
Distributor | 25t |
Tracker | Optional Part |
3. Main parts
1) Power system: Dongfeng Cummins C series Engine (110KW/2300rpm)
2) Main hydraulic system: high quality gear pump, hydraulic walking device from Ningbo Tilorms.
3) Main working equipment: adopts rack and pinion for push&pull, with efficient and stable transmission and convenient and simple maintenance.
4) Chassis: high-intensity rubber track from home famous brand, less ground pressure ratio
5) Mud pump system: high quality Tongfang/Leike mud pump(200L/min)
