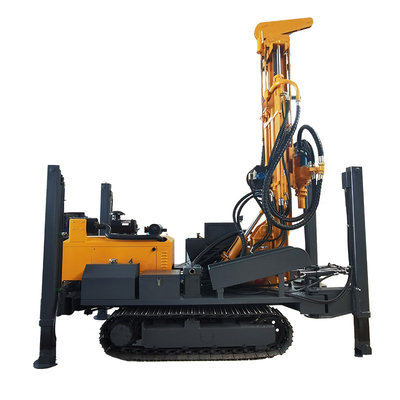

Water Wells Rock Drill Rig China Crawler 200m Depth Water Well Drilling Rig For Sale

1 Piece
MOQ
$22,945.00(1 - 2 Pieces) $22,700.00(>=3 Pieces)
Price
Water Wells Rock Drill Rig China Crawler 200m Depth Water Well Drilling Rig For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: /
Dimension(L*W*H): 4000*1850*2300mm
Weight: 6500 KG
Warranty: 1 Year
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 6 Months
Core Components: Motor
Key Selling Points: Competitive Price
Drilling Diameter: 300mm
Drilling Depth: 260m
Mobility: It Can Move
Product Name: Drilling Machine
Name: Multifunction Hydraulic Drilling Rig
Drilling Diameter: 300mm
Application: Water Wells Rock Drill Rig
Drilling Depth: 260m
Local Service Location: None
After-sales Service Provided: Online Support
Certification: ISO
Basic Infomation
Certification: ISO
Payment & Shipping Terms
Packaging Details: Wooden box
Product Description
260 crawler water well drilling
Total Weight
6.5T
Drill rod diameter
φ76/φ89
Drilling diameter
140-305mm
Drill rod length
1.5m/2m/3m
Drilling depth
180m
Lifting power
15T
One-time advance length
3.3m
Boost speed
24m/min
Walking speed
2.5km/h
Fast forward speed
28m/min
Gradeability
30
Loading width
2.73m
Monitor rate
70kw
Hoist lifting force
1.5T
Working pressure
1.7-3MPA
Rotation torque
4000-5300
Air consumption
17-31m³/min
size
4000*1850*2300mm
Swing speed
45-70rpm
With impactor
Medium and high wind pressure series
Footage efficiency
10-35m/h
High outrigger stroke
1.4m
Engine brand
FAW Jiefang Engine
Operation console, simple and easy to operate
Thick rubber track, wear-resistant and durable
It is suitable for industrial and civilian drilling and low-temperature drilling.
It has the advantages of large drilling diameter, deep drilling, fast footage, flexible and efficient, etc.
Warehouse pictures
Drill pipe
High and low pressure impactor
High and low pressure drill bit
Company Profile
Yixun Machinery Co., Ltd., as a machinery manufacturing entity, Mainly engaged in construction machinery, environmental protection
machinery, maintenance machinery, agricultural machinery, mining machinery and accessories business. We always take high quality,
high standards, high efficiency and high service as our strategic goals, Keep up with the technological development trend and
industry demand of construction machinery, Continuously optimize small construction machinery products, Provide users with quality
products and services.
FAQ
Q1:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:How to install our mini crawler excavator?
A:we can provide detailed installation video/pictures, or send engineers team.
Q: How many days it takes before you deliver the mini excavator china to us?
A: For small chinese excavator, we will deliver you the small excavator after receving your payment,ASAP; for large ones, we need
1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
