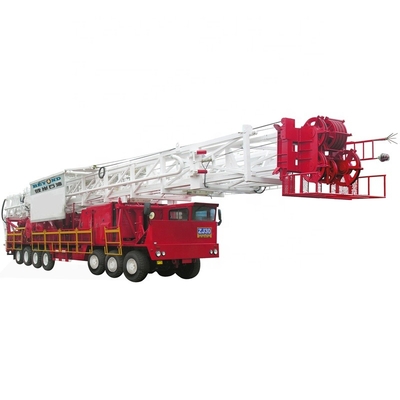

ZJ30CZ 3000M Oil Well Drilling Rig Drilling Rig Machin
|
Rig Model |
ZJ15CZ |
ZJ20CZ |
ZJ30CZ |
ZJ40CZ |
|
|
NO. |
ITEM |
Specification |
Specification |
Specification |
Specification |
|
1 |
Installed Power |
540HP (402KW) |
630HP (470KW) |
630 HP×2 (470 KW×2) |
630 HP×2 (470 KW×2) |
|
2 |
Max.Hook Load |
1350kN |
1580kN |
2250kN |
2250kN |
|
3 |
Max. Drill String Load |
500kN |
700KN |
1150KN |
1150KN |
|
4 |
Drawworks Rated Power |
450HP |
600HP |
1000HP |
1000HP |
|
5 |
Transmission Mode |
Hydraulic+Mechanical |
Hydraulic+Mechanical |
Hydraulic+Mechanical |
Hydraulic+Mechanical |
|
6 |
Drive Mode |
10×8 |
12×8 |
14×10 |
14×10 |
|
7 |
Nominal Drilling Depth (4 1/2"DP) |
1500m |
2000m |
4000m |
4000m |
|
8 |
Mast Height |
33m |
35m |
38m |
38m |
|
9 |
Rig Floor Height |
4.5m |
4.5m |
6m |
6m |
|
10 |
Wirerope Diameter |
26mm |
29mm |
32mm |
32mm |
|
11 |
Hydraulic System |
14MPa |
14MPa |
21MPa |
21MPa |
|
12 |
Pneumatic System |
0.8MPa |
0.8MPa |
0.8MPa |
0.8MPa |
|
13 |
Travelling System |
5×4 |
5×4 |
6×5 |
6×5 |
|
14 |
Overall Size |
19.37×3.05×4.49m (Including Mast) (Without Mast) |
20.1×3.05×4.49m (Including Mast) (Without Mast) |
23×3.2×4.8m (Including Mast) (Without Mast) |
23×3.2×4.8m (Including Mast) (Without Mast) |
|
15 |
Total Mass |
About 52000 kg |
About 58000Kg |
About 85000 kg |
About 85000 kg |
Power system, drawworks, mast, traveling system and driving devices of truck mounted drilling rig are mounted on a self-propelled chassis for high efficient mobilization. The Company has developed truck-mounted drilling rigs with drilling depth of 1500m, 2000m, 3000m and 4000m, and static hook load ranging from 1350kN to 2250kN. The truck- mounted drilling rigs feature heavy working load, reliable performance, good cross-country capability, easy mobilization and low cost, which are suitable for the drilling operation of medium depth and shallow oil well on land, desert and plateau.
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.
BEYOND believes that it will become your best cooperative partner in China.
