HFXC Series 800m 2000m Deep Water Well Drilling Rigs machine price

1.0 Sets
MOQ
$60,000.00(1 - 1 Sets) $50,000.00(>=2 Sets)
Price
HFXC Series 800m 2000m Deep Water Well Drilling Rigs machine price
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Farms, Home Use, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Water Well Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: 220V
Dimension(L*W*H): 8100 X 2500 X 3250-14200 X 2550 X 4000mm
Weight: 133000 KG, 13.3-55T
Warranty: 1 Year
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear
Key Selling Points: Competitive Price
Drilling Diameter: 330-820mm
Drilling Depth: 300-3000m, 300-3000m
Mobility: Mobile
Max. Diameter Of Working Floor: 330-820mm
Engine Power: 113-571kw
Max. Lifting Capacity: 160-1200KN
Max.feeding Capacity: 80-260KN
Max.lifting Speed: Max.lifting Speed
Stroke: 7000-15240mm
Floating Distance: 100mm
Max.tilting Angle: 85 Degree
Basic Infomation
Payment & Shipping Terms
Packaging Details: standard export packing or as you needs
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
* All-wheel drive vehicle chassis, satisfy the national emission standard, strong off-road performance.
* Multi-axle steering intelligent control and multi-steering mode provide flexible steering and small steering diameter.
* Hydro-pneumatic suspension with good travelling performance, which adapts to severe road conditions such as muddy road, sand,snowfield. upland etc.
Full Hydraulic Top-drive
Output port adopts floating device, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem.
Spindle has a strong slag discharge capacity through its large drift diameter, which makes it especially adapt to the reverse circulation construction.
The Feeding System
It has a large stroke by extending completely when working.which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.
It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast
lifting.With that it ensures good drilling performance and improves working efficiency.
The Convenient Stem Changing Mechanism
Optional independent stem auto-change system and top-drive can use cooperatively, which realizes full automation of stem loading and unloading, and reduces the number of workers and work intensity on the work site.
The Advanced and Efficient Hydraulic Control System
The independently developed load sensitivity control system can provide proper flow and pressure to the actuating mechanism according to the loading needs, which is energy-efficient.
It adopts the proportional control of the major movements, which makes the speed adjust conveniently. With no shock when start and stop, the control is highly accurate.
The Efficient Large Torque Fastening and Unfastening Device
It can fasten and unfasten the drill tools rapidly by using with power slip cooperatively, which realizes loading and unloading drill stem without assistance of workers and reduces work tensity.
The Comfortable Cab
Large lifting force drilling rig adopts closed cab, which insulates the noise and dust of the work site efficiently and improves operating environment greatly. With human engineering designed intensive operation platform, it is comfortable to operate and convenient to observe.
Technical Data
Type
HFXC300
HFXC500
HFXC3000

Drilling capability
Driling depth
m
300(∅89)
500(∅89)
3000(∅114)
Max. diameter of working floor
mm
∅330
∅500
∅820



Feeding system
Max. lifting capacity
KN
160
280
1200
Max.feeding capacity
KN
80
120
260
Max.lifting speed
m/min
32
39
30
Max.feeding speed
m/min
XS3800
57
60
Stroke
mm
7000
15240



Top drive
Max.torque
N.M
6600/3300
11000
27500/18300
Max.Speed
r/min
95/190
143
120/180
I.D
mm
∅55
∅76
∅105
Floating distance
mm
/
100
100
Max.tilting angle
°
/
85
85
Deck engine
Type
QSB5.9-C150
QSB6.7-C220
CAT C18
Rated power
kw
113
164
571
Main winch
Hoisting capacity
/
50
/
Tool winch
Hoisting capacity
KN
15
/
50
Breakout device
Max.breakout torque
KN
/
22000
95000
vise clamping range
N.M
/
3.5" ~7.5"
2-7/8"~ 10-6/8"
Foam pump
Max. flow
mm
/
35
/
Max. pressure
L/min
/
4
/
Mud pipe
I.D
Mpa
∅55
∅76
∅76
Max. pressure
mm
8
8
35



Chassis
Drive mode
Mpa
4x2 car chassis
Iveco 6x4 car chassis
10x8 all-ground car chassis
Rated power
kw
121
220
327
High speed
km/h
79
96
80
Max.climbing gradient
%
41
54
45
Working dimension(L*W*H)
mm
7960 x 2500 x 7370
10200 x 3600 x 11250
14680 x 5184 x (13800 ~ 21400)
Transportation dimension(L*W*H)
mm
8100 x 2500 x 3250
12000 x 2500 x 4200
14200 x 2550 x 4000
Weight
t
13.3
23
55

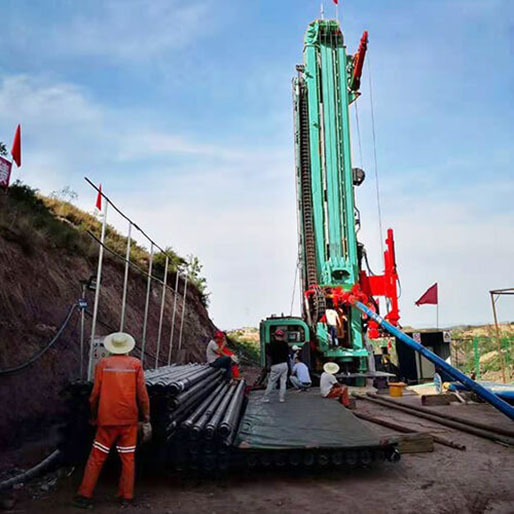

Working Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the
ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.


1. More than 20 years experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.

5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
