Construction works   Mobile Water Well Drilling Rig Machine 200m Drilling Rig Manufacturer

1.0 piece
MOQ
Construction works   Mobile Water Well Drilling Rig Machine 200m Drilling Rig Manufacturer
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Brazil, Pakistan, Mexico, Russia, Thailand, Morocco, Argentina, Colombia, Sri Lanka, South Africa, Ukraine, Kyrgyzstan, Malaysia, Australia, None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Dimension(L*W*H): 3950*1750*2250
Weight: 5000 KG
Warranty: 1 Year
Marketing Type: New Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC, Engine
Key Selling Points: Competitive Price
Drilling Diameter: 140-254mm
Drilling Depth: 200m
Basic Infomation
Payment & Shipping Terms
Packaging Details: container
Supply Ability: 120 Set/Sets per Month
Product Description
Product Description

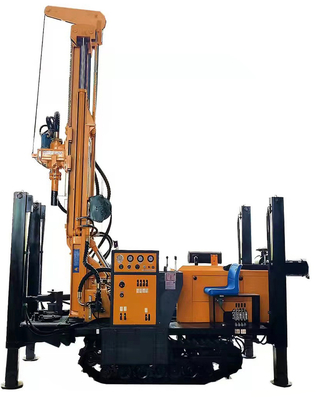

BTS200-YX series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Adopt steel tracked chassis,Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling,meeting the demands of well-drilling in different terrain strata.

Water well drilling rig features:

1. Equipped with brand-name engine, strong power and long service life
2. Patented design compound boom, double oil cylinder lifting, strengthened tower
3. The drilling diameter is large, the drilling depth is deep, and the advancing speed is fast
4. (Oil pump imported from Italy) 3-way oil pump, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder
Factory direct sales of various water well drilling rigs
Model
BTS180-YX
BTS200-Y
BTS260-Y
BTS280-Y
BTS350-Y
BTS580-Y
The weight(T)
4.5
5
6.5
7.6
8.6
12
Drill pipe diameter(mm)
76/89
76/89
76/89
76/89
89/102
102/108/114
The hole diameter(mm)
140-254
140-254
140-305
140-305
140-325
140-350
Drill pipe lenght(m)
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m
1.5m/2.0m/3.0m/6.0m
1.5m/2.0m/3.0m/
6.0m
Drilling depth(m)
180
200
260
280
350
600
Rig lifting force(T)
12
13
15
17
22
28
One-tine advance length(m)
3.3
3.3
3.3
6.6
6.6
6.6
Equipped capacitor(kw)
60 kW
65KW
70KW
75KW
93 kW
132 kW
Hoisting force of winch(T)
1.5
1.5
1.5
2
2
2
Swing torque(N.m)
3200-4600
3400-4700
4000-5300
4500-6000
6200-8500
8500-11000
Dimension(mm)
3950*1630*2250
3950*1750*2250
4000*1850*2300
5900*1850*2360
6000*2000*2550
6200*2200*2650
Swing speed(rpm)
45-70
45-70
45-70
40-70
66-135
45-140
The penetration effciency(m/h)
10-35
10-35
10-35
15-35
15-35
15-35
Rapid rise speed(m/min)
20
30
24
25
18
20
Walking speed(km/h)
2.5
2.5
2.5
2.5
2.5
2.5
Fast feeding speed(m/min)
40
60
28
30
33
40
1. Engine: Well-known brand Guangxi Yuchai turbocharged engine or American Cummins brand turbocharged engine
2. Traveling device: equipped with new traveling motor and reducer, with long service life;
3. Hydraulic oil pump: imported from Italy, parallel gearbox design, oil pump separation, provide
4. Sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;
5. Power head device; the box body is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs.Detail Introduction
Application

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1.Standard plywood case, its compressive strength and bearing quality is better.

2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.When importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 15 days after received your payment.
