Portable water well drilling rig diesel engine truck mounted drilling rig for sale

1.0 Sets
MOQ
Portable water well drilling rig diesel engine truck mounted drilling rig for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Water Well Drilling
Showroom Location: None
Condition: New
Type: Water Well Drilling, Water Well Drill Rig
Power Type: Diesel
Usage: Water Well
Voltage: /
Dimension(L*W*H): 7900*2370*7200 Mm
Weight: 9100() ()KG
Warranty: 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump, Engine
Key Selling Points: Competitive Price
Drilling Diameter: 300mm, 200mm
Drilling Depth: Max.250m
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Field Installation, Commissioning And Training
Color: Red
Hole Diameter: 90--1200(mm)
Hole Depth: 250(m)
Dimensions(L-W-H) Working Conditions: 5300*2000*7200(mm)
Chassis: Trailer With Four Wheels
Local Service Location: None
Certification: API
Basic Infomation
Certification: API
Payment & Shipping Terms
Packaging Details: seaworthy packing.
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description

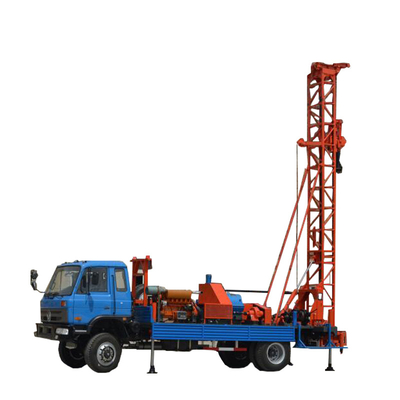

GL-IIA Truck Water Well Drilling Rig

Technical Parameter
Drilling Parameter
Hole diameter：
90--1200(mm)
Hole depth：
250(m)
Run Of Rod：
3、4(m)
Drill rod diameter：
φ60 φ73 φ89 φ95 φ133(mm)
Drilling Technology：
Normaland Reverse Circulation for both Mud and Air
Down-The-Hole hammers:
Middle-High-Pressure Air
Performance parameter
Drill Head Inside Diameter：
φ60 φ80 φ120
Drill Head lifting speed(m/s)：
0.37 0.16
Drill Head lifting Force(kN)：
45.4 105
Drill Head Spin Speed:
A(Forward:14-23-52-84,Reverse:8-13-29-47r/min）
B(Forward:32-52-116-188,Reverse:18-29-65-106r/min）
Shape Parameters
Dimensions：
（L-W-H) Working conditions 7900×2370×7200(mm)
Transport status:
（L-W-H) 8450×2370×3400(mm)
Supporting Form：
Hydraulic Unit
Mast Up-Down：
Hydraulic Unit
Rig mass：
9100(Kg)
Chassis：
Dong Feng EQ1093 (four-wheel drive)
Power Unit：
Diesel Engine
Power：
42(kW)
Pump：
BW450 Mud Pump
Flow(L/min)：
450
Pressure(Mpa)
1.2
Main Hoist Lifting Force：
20.6(kN)
Feed Thrust：
0-15（kN）
Notes: Drill head spin speed can be selected, A is normal


Application
◆Drilling wells for urban and rural life
◆Drilling wells for agricultural irrigation and industries
◆Drilling for geotechnical survey
◆Drilling construction engineering holes
◆Drilling geothermal pump wells


Diesel Engine
Mud Pump
Related Products

Truck Water Well Drill Rig

Crawler Water Well Drill Rig

Blasthole Drilling Rig

Core Drilling Rig

Mud Pump

Air Compressor

DTH Hammer
Hammer Bit
Drill Pipe

PDC Bit

Tricone Bit

Drag Bit

Packing and Transport

1. Drilling machine is bare packing.
2. Drilling tools  will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.


Customer Visiting


Exhibitions

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
