We supply a full line of drilling rig packages: skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs （Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.

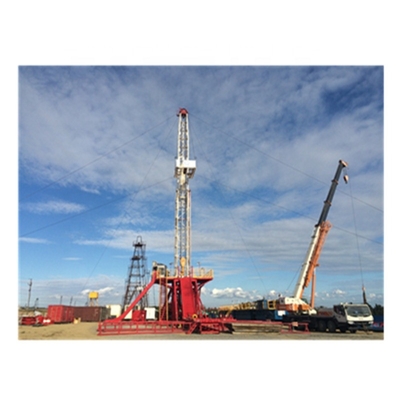

Power system, draw works, mast, traveling system and driving devices of truck mounted drilling rig are mounted on a self-propelled chassis for high efficient mobilization. The Company has developed truck-mounted drilling rigs with drilling depth of 1500m, 2000m, 3000m and 4000m, and static hook load ranging from 1350kN to 2250kN. The truck- mounted drilling rigs feature heavy working load, reliable performance, good cross-country capability, easy mobilization and low cost, which are suitable for the drilling operation of medium depth and shallow oil well on land, desert and plateau.
Item | ZJ15CZ | ZJ20CZ | ZJ30CZ | ZJ40CZ |
Install power HP(kw) | 540 (402) | 630 (470) | 1080 (804) | 1260 (940) |
Max. hook load | 1350KN | 1580KN | 1800KN | 2250 |
Drawworks rated power | 450HP | 600HP | 750HP | 1000HP |
Transmission mode | Hydraulic + Mechanical | Hydraulic + Mechanical | Hydraulic + Mechanical | Hydraulic + Mechanical |
Nominal drilling depth | 1500m | 2000m | 3000m | 4000m |
Mast hegiht | 33m | 35m | 38m | 38m |
Rig floor height | 4.5m | 4.5m | 6m | 6m |
Wirerope diameter | 26mm | 29mm | 32mm | 32mm |
Overall Dimension L*W*H(m) | 19.37*3.05*4.49 | 20.1*3.05*4.49 | 23* 3.2*4.8 | 23*3.2*4.8 |
Total. Weight (kg) | 52000kg | 58000kg | 73000kg | 85000kg |
Characteristics for series of truck-mounted drilling rigs：
1. Power system is fitted with engine and hydro-mechanical transmission.
2. Electric, air, and hydraulic system is centrally controlled. Key components are world famous make.
3. The mast design and manufacturing comply with API 4F and 8C specification. Finite element analysis and stress inspection test will be conducted for mast. The surface of structural pieces will be sand blasted.
4. Main drum completes with integral type Lebus groove. Main braking will be of band type or hydraulic disc brake. Auxiliary brake can be of air controlled water-cooling disc brake, air tong brake, hydro brake, electromagnetic eddy auxiliary brake. Sand drum is optional.
5. Chassis is powered by the deck engine via transfer case. Heavy duty wide wheel distance, high strength beam, hydraulic power steering.
