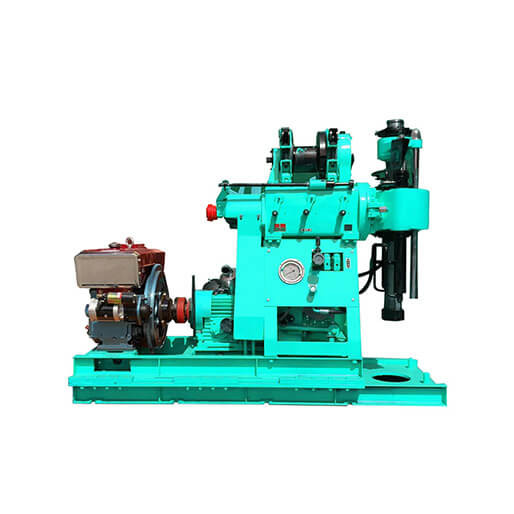

Portable Farms HF200 Geotherm Water Well Drilling Rig Machine Rock Drill Rig

1 Set
MOQ
Portable Farms HF200 Geotherm Water Well Drilling Rig Machine Rock Drill Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Farms, Home Use, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Type: Drilling Water
Power Type: Diesel
Usage: Water Well
Voltage: 380V 50HZ
Dimension(L*W*H): 2.75*0.95*1.6m
Weight: 975 KG
Warranty: 1 Year
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Gear, Bearing, Engine
Key Selling Points: Easy To Operate
Drilling Diameter: 300mm
Drilling Depth: 200m
Mobility: Mobile
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support
Drilling Depth: 200m
Drilling Diameter: 300mm
Spindle Speed: 64,128,287,557 R/min
Spindle Stroke: 450 Mm
Reel Lifting Speed: 17,35,75,151 R/min
Reel Diameter: 140 Mm
Wirerope Diameter: 13 Mm
Wirerop Cubic Measure: 35 M
Work Pressure: 1.5 Mpa
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Certification: ISO9001:2000
Basic Infomation
Certification: ISO9001:2000
Payment & Shipping Terms
Packaging Details: export normal packing
Product Description
Product Description


Specially recommended
1, Drilling depth can reach 200m.2, Steels quality is good, torque is large.
3, Easy operation, free-maintaining.
4, For various complex strutam, such as pebble bed, aggregate bed.
5, Saving money, compact construction, easy moving.
6, For geological exploration, exploration of high building construction, riversconstruction, civil water well.
7, It can do standard penetration test, use auger drilling and sampling with solid stem and the triple rod jet grouting.
Size Information
Main machine technical parameter
Drilling depth
200m
Drilling diameter
300mm
Drilling Pipe Diameter
50mm
Drilling Angle
90°～45°
Drilling Weight（no include power）
975kg
Unity Machine Dimesions
2.75×0.95×1.6 m
Spindle
spindle speed
64、128、287、557 r/min
Spindle stroke
450mm
Hoist
Max.single line hoisting capacity
2400kg
Reel lifting speed
17、35、75、151r/min
Reel diameter
140mm
Wirerope diameter
13mm
Wirerop cubic measure
35m
Hug folldgate diameter
260mm
Hug folldgate belt width
70mm
Distance between drill and hole
400mm
Power
Diesel engine
s1110 Model
Electric Motor
Y160M—4 ,15 kw 1440 r/min
Mud pump
Type
Horizontal single urn twin-action
Displacement
170L/min
Maximum pressure
3.0Mpa
Work pressure
1.5Mpa
Water inlet caliber
40mm
Water to exit caliber
30mm
Triangle conveyer belt
B1728 mm
Hydraulic pump
Specification
CBT—F—314
Triangle conveyer belt
B1100*1
Customer Visit
FAQ
1. Are you a trading company or a manufacturer? We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world. 2. How is the quality of your machine? Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped. 3. How to inspect the goods? 1) Support customers to come to the factory for on-site inspection. 2) Support customers to designate third-party companies to inspect goods. 3) Support video inspection. 4. Do you have after-sales service? Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees. 5. How about quality assurance? We provide a one-year quality guarantee for the main machine of the machine. 6. How long is your delivery cycle? 1) In the case of stock, we can deliver the machine within 7 days. 2) Under standard production, we can deliver the machine within 15-20 days. 3) In the case of customization, we can deliver the machine within 20-25 days.
