High Quality Powerful Granite KT5C Motor Used New Integrated Down The Hole Mine Drill Rig For Open Use

1 Set
MOQ
$40,000.00(>=1 Sets)
Price
High Quality Powerful Granite KT5C Motor Used New Integrated Down The Hole Mine Drill Rig For Open Use
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Construction Works , Energy & Mining
Showroom Location: Australia
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Ore
Voltage: 24V
Dimension(L*W*H): 8000*2260*2800mm
Weight: 9500kg
Warranty: More Than 5 Years
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, PLC
Key Selling Points: Flexible Manufacturing
Drilling Diameter: 90-105mm
Drilling Depth: 30M
Max. Drill Depth: 30M
Drill Diameter: 90-105mm
Gradeability: 30
Rotating Speed: 0-2.5Km/h
Air Consumption: 13m3/min
Working Pressure: 17 Bar
Lifting Power: 25KN
Alternative Name: Wagon Drill, Blast Hole Drill, Bore Hole Drill
Application: Granite, Basalt, Quartz, Quarry Plant Etc.
Key Words: Drilling Rig
Local Service Location: None
After-sales Service Provided: Video Technical Support, Online Support, Field Installation, Commissioning And Training
Certification: ISO9001,GC,QAC
Basic Infomation
Certification: ISO9001,GC,QAC
Payment & Shipping Terms
Packaging Details: KAISHAN brand KT7 Integrated micropile drilling rig packing details:Mine crawler drill rig in standard container, nude packs or in bulk.
Supply Ability: 100 Set/Sets per Year Integrated micropile drilling rig
Product Description
Products Description

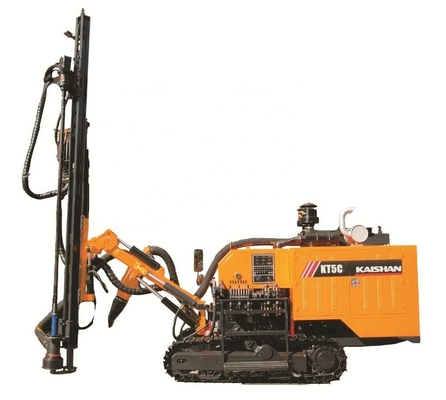

KT5C Integrated Down the hole Drill Rig for Open Use

The KT5C down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system andscrew air compressor system, characterized by compact structure, excellent inteqrity and mobility. Equipped with the Yuchai Chinastage IIl Engine, the drill rig meets national standards for emissions and environment. It is typical of energy conservation,efficiency. safety, environment-friendliness, flexibility, simple operation and stable performance, etc.

Advantages of KT5C Machine


Specific performance is as follows:
1. Compact structure, DTH drilling rigs and the middle pressure screw air compressor combined well.

2, This drill rig equipped with a single stage middle pressre screw air compressor, capacity(10m3 / min), pressure (1.5MPa), using the middel pressure pneumatic impact, high efficiency and low energy consumption.

3, This drilling rig is with the low gravity and and balanceddistribution of the car, with heavy "Four Wheels and one track"( drving wheel, guide wheel, thrust wheel, riding wheel and one track), with 19 °automatic leveling device and independently controlled double locking system, which improved the stability of this drilling rig, to adapt to different conditions. The drill rig equipped with two-speed travel motor + reducer structure,achieve the perfect combination of speed and strength.
4, Large displacement hydraulic pump mounted directly on the engine back,simple structure to reduce the source of the fault.

5, large-scale drilling boom luffing system can meet the needs of a variety of conditions and different stations, especially the low level holes.
Actual picture of cabinet loading
Application Area
KT5C integrated open-air DTH drilling rig is an efficient and energy-saving advanced drilling equipment specially developed forsmall and medium-sized open pit mining, quarry and infrastructure construction projects.
Recommend Products
Company Profile

QUZHOU KAIPU MACHINERY EQUIPMENT CO., LTD.

Our company is located in Quzhou City. Zhejiang Province, which is in the central area of China with convenient transportation and the economic center of Zhejiang. Our company has many years" experience in the business of air compressors and drilling rig machines. We are one of the biqgest suppliers providing the best prices and quality! We absorb advanced technoloay from abroad to satisfy different requirements.At present, the main products of our company is more than 20 kinds, including piston ail compressors, screw air compressors, drilling rig machines. drill bits. drill rods. DTH, air picks, roch drills, down the hole drills, small mining piston air compressors, chiller air compressors, and concrete spraying machines. Meanwhile, we own independent rights of import and export.Now, our company has passed ISO9001: 2008 quality Certification. Our products have a vast market in foreian countries. and are exported to Southeast Asia, South America. Africa and many other countries and reaions. Excellent capability, perfect service and eminent quality can content different customers, then gaining the general recognition from both domestic and overseas users.
Exhibition
Product packaging
FAQ

Q1: Are you factory or trade company?

A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?

A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?

A3: One year warranty for the machine and technical support according to your needs

Q4: Will you provide some spare parts of the machines?

A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?

A5: Yes, of course. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?

A6: 30% TT in advanced, 70% T/T against the B/L copy

Q7: How long will you take to arrange production?

A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days

Q8: Can you accept OEM orders?

A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?

A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
